| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: Version 14 Product type: Network distributor box Sensor type: Universal Number of positions: 5 Connection profile: Power Number of slots: 4 Cable outlet: straight Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Rated voltage (II/2): 630 V Rated voltage (III/2): 400 V Rated voltage (III/3): 24 V 250 V Rated surge voltage (II/2): 4 kV Rated surge voltage (III/2): 4 kV Rated surge voltage (III/3): 4 kV Rated current: 16 A (at 20ðC) 16 A Nominal voltage UN: 24 V Nominal current IN: 16 A Transmission medium: Copper |
| Connection data | Connection technology Connection method: Coupling |

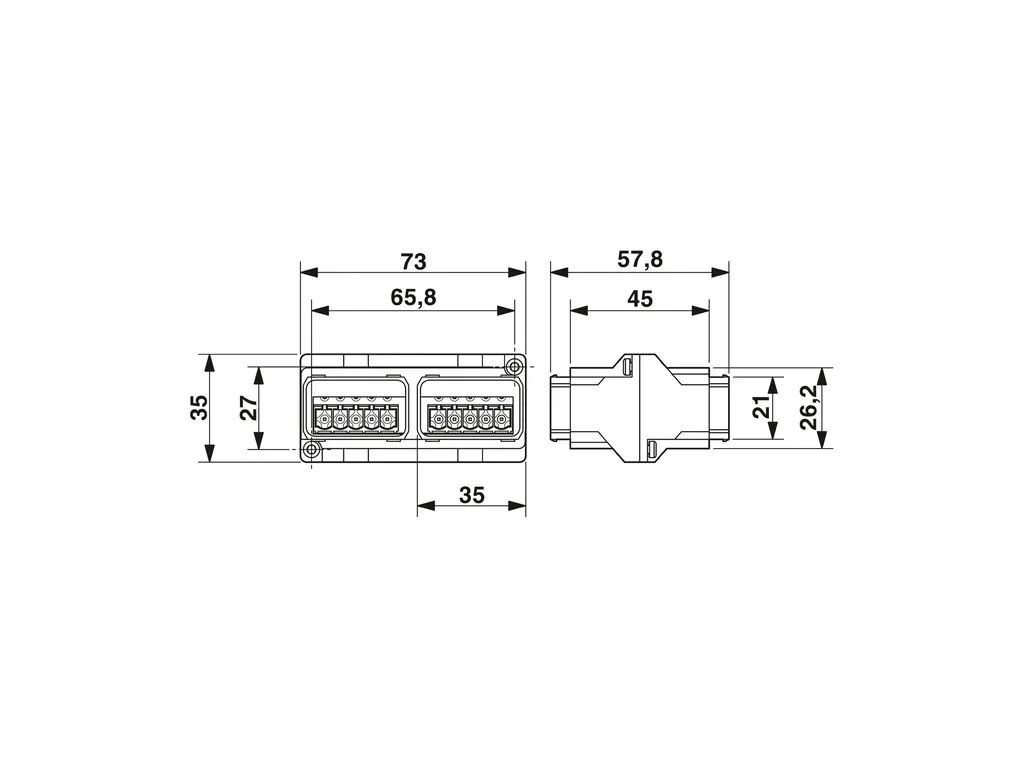

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/42037c1c11788f4381d1d3e77d15edd3/-S204x204-FJPG Width: 73 mm Height: 35 mm Length: 58 mm |
| Material specifications | Color: black Material: Metal Flammability rating according to UL 94: V0 Seal material: NBR Contact surface material: Gold over nickel Contact carrier material: PA Housing material: Metal |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (assembly): -5°C ... 55°C |
| Mounting | Mounting type: Screw mounting Assembly instructions: When mounting the device on a level surface, use the VS-PPC-J-M mounting foot Connection method: Coupling |
