| Mounting | Mounting type: Screw mounting |
| Product properties | Type: M12 Product type: Circular connectors (device side) Sensor type: VARAN Number of positions: 6 No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: I Degree of pollution: 1 |
| Material specifications | Color: black Material: PC PA Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated Outer sheath, material: SANTOPRENE halogen-free |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Nominal voltage UN: 30 V Nominal current IN: 2 A Transmission medium: Copper Transmission speed: 100 Mbps |

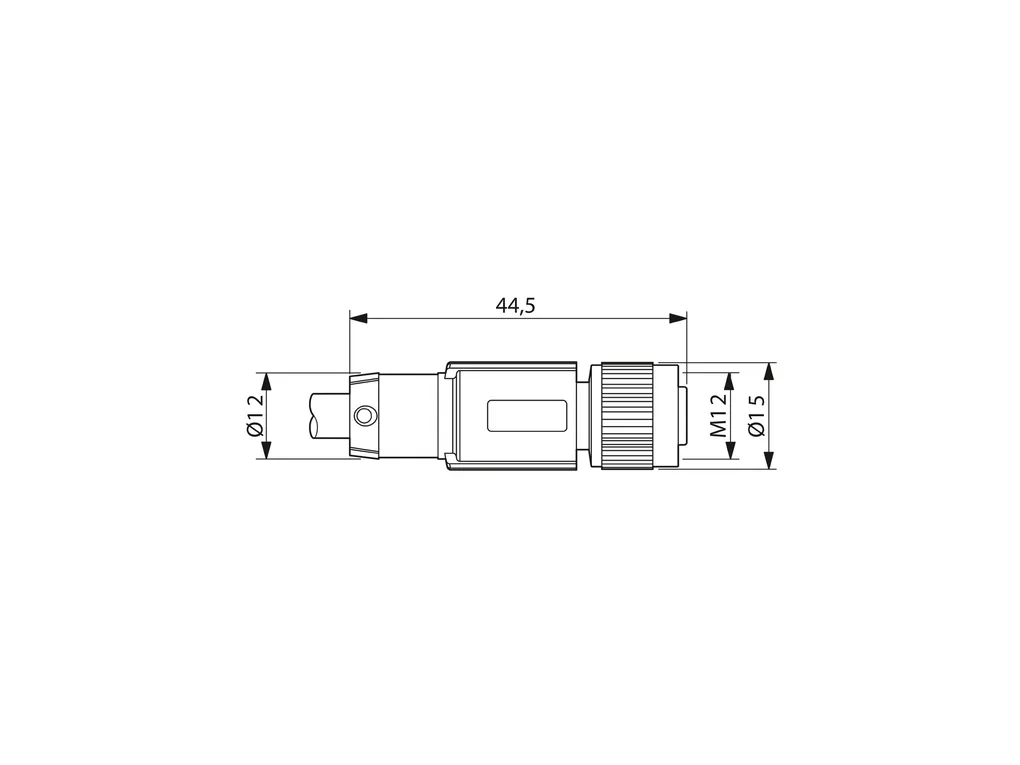

| Connector | Connection 1 Type: Socket straight M12 Degree of protection: IP65/IP67 Locking type: SPEEDCON Connection 2 Type: Plug straight RJ45 Degree of protection: IP20 |
| Cable/line | Cable length: 1.50 m VARAN PVCÃ[971] Shielded: yes UL AWM Style: 2461 (80°C/300 V) Cable type: VARAN PVC Short symbol: 2YLI2Y(ST)CY Cable type (abbreviation): 971 Signal type/category: VARAN CAT5 (IEC 11801), 100 Mbps Cable structure: 1x2x24/32+2x2x24/19, SF/UTP External cable diameter: 7 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: black Thickness, outer sheath: 0.9 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor structure, voltage supply: 32x 0.10 mm Conductor cross section: 2x 2x 0.25 mm² (Signal line) AWG power supply: 24 Material wire insulation: PE Wire diameter incl. insulation: 1.25 mm (Signal line) 1.4 mm (Power supply) Single wire, color: blue-yellow, green-orange, red-blue Twisted pairs: 2 cores to the pair Overall twist: 3 pairs with filler elements to the core Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 85 % Nominal voltage, cable: ââ°¤ 80 V Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1000 V Cable resistance: 78 é/km (at 20ðC) Cable insulation resistance: ââ°¥ 500 Mé*km (at 20ðC) Working capacitance: approx. 57 nF (at 1 kHz) Signal runtime: 5.3 ns/m Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Number of bending cycles: 200000 Minimum bending radius, drag chain applications: 5 x D Resistance to oil: According to DIN EN 60811-2-1, 168 h at 100°C Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -40°C ... 80°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): 0°C ... 50°C (for installation) -20°C ... 80°C (cable, fixed installation) -25°C ... 90°C (Plug / socket) |
