1413160 PHOENIX CONTACT -

Product properties	Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 Shielded: yes
Signaling	Status display: No Status display present: No
Electrical properties	Rated voltage (III/3): 72 V (DC) Nominal voltage U_N: 48 V Nominal current I_N: 0.5 A Transmission medium: Copper Transmission speed: 10 Gbps
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 200 Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N
Material specifications	Outer sheath, material: PUR

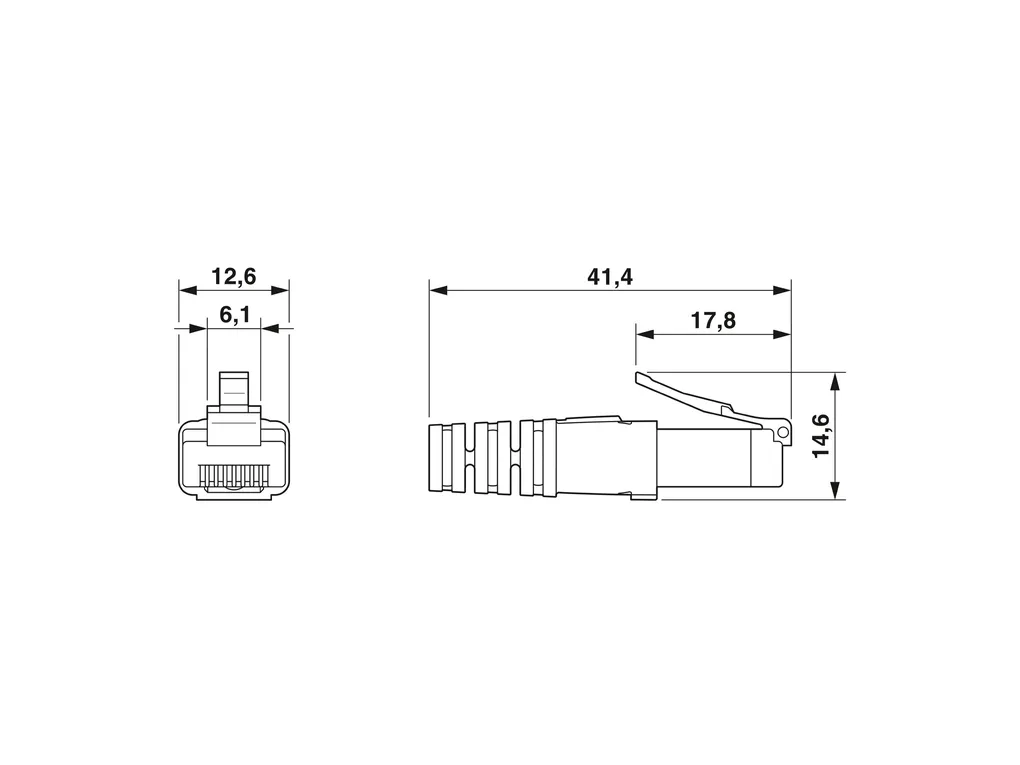

Connector	Connection 1 Type: Plug straight RJ45 Shielded: yes Degree of protection: IP20 Number of positions: 8 Connection 2 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Degree of protection: IP20
Cable/line	Cable length: 1.00 m Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Conductor structure signal line: 6.00 mm +0.2Ãmm -0.1Ãmm AWG signal line: 26 Material wire insulation: PE Shielding: S/FTP Test voltage, cable: 1000 VÃDC (1Ãminute) Cable insulation resistance: 2000 MÃ©*km (500 V) Coupling resistance: 30.00 mÃ©/m (30 MHz)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (RJ45 connector)
