1414691 PHOENIX CONTACT -

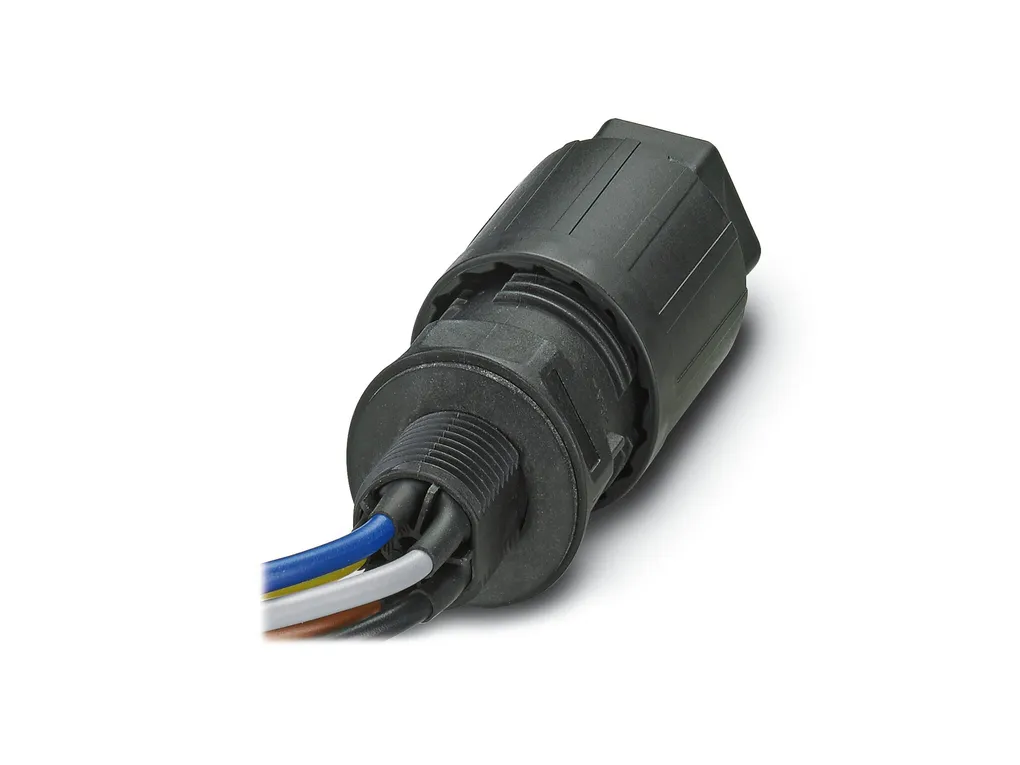

QPD W 2PE1,5 M20 1,0 BK - Panel feed-through

Panel feed-through, product family: QPD, connection method: Single wires, number of positions: 2+PE, M20, 0.5 mm² ... 1.5 mm², 690 V, 17.5 A, PA, black, without QUICKON nut, coding: Coding profile, 1.5 mm², cable length: 1 m

Cod. Articolo: 1414691 copia - copy

Cod. Fornitore: 1414691 copia - copy

PHOENIX CONTACT

Product properties	Product type: Panel feed-through Product family: QPD Type: QPD 3x1,5 Number of positions: 3 Connection profile: 2+PE Position marking: 1, 2, PE Number of connections: 10 Number of connections per position: 1 Coding: Coding profile Data management status Article revision: 03 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection method On the device side: Single wires Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 0.5 mm² ... 1.5 mm² Conductor cross section solid: 0.5 mm² ... 1.5 mm² Connection cross section AWG: 20 ... 16 Tightening torque Union nut: 8 Nm Tightening torque Locking nut: 5 Nm
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/166230/full/b1500?format=jpg Width: 25 mm Height: 25 mm Length: 45.5 mm Diameter: 25 mm
Electrical properties	Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Contact resistance: < 3 mÃ© rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage U_N: 690 V AC 690 V DC Nominal current I_N: 17.5 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: max. 50
Material specifications	Color: black (RAL 9005) Material Housing: PA Material Contact: Cu Material Contact surface: silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC/PE/TPE/rubber
Cable/line	Cable length: 1 m Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm Wire diameter including insulation: 1.6 mm ... 3 mm Position marking: 1, 2, PE Single wire, color: brown, blue, green/yellow Cable cross section: 1.5 mm² Material wire insulation: PVC/PE/TPE/rubber
Mounting	Mounting type: Front mounting M20
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2 m / 24 h) IP69K Touch-proof when not plugged in (IP2X) Impact strength: IK07 Ambient temperature (operation): -40 °C ... 100 °C Temperature when conductor connected: -5 °C ... 50 °C Ambient temperature (storage/transport): -40 °C ... 100 °C
