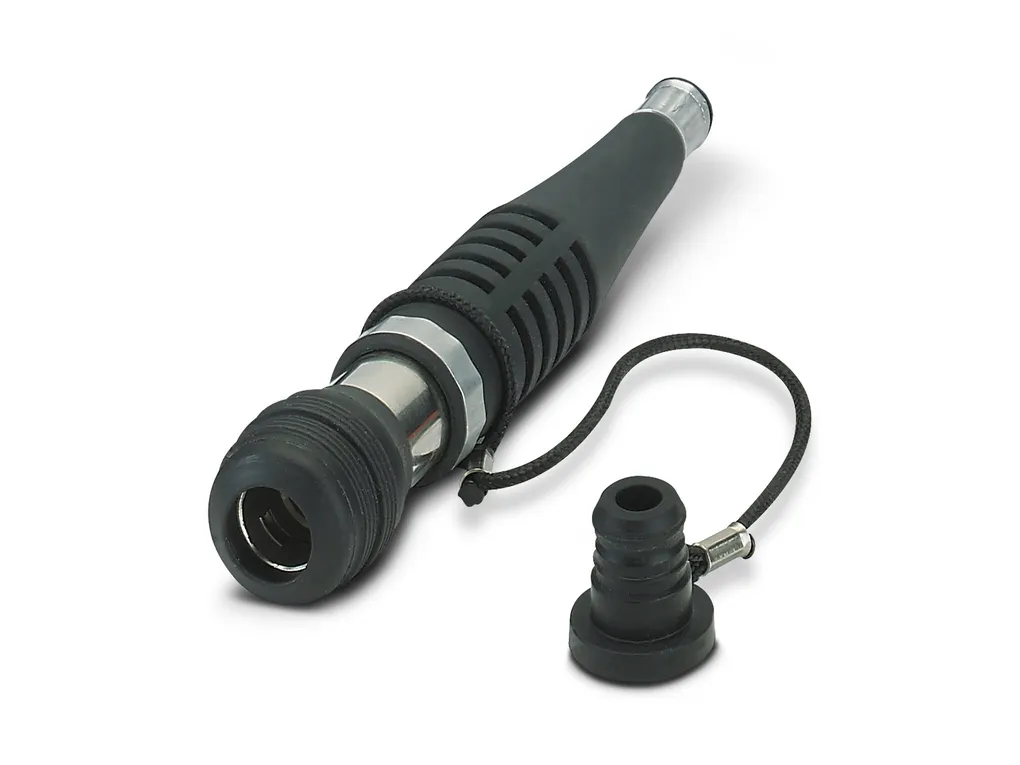

1415357 PHOENIX CONTACT -

Product properties	Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 12
Electrical properties	Attenuation: typ. 0.2 dB max. 0.6 dB Transmission medium: Multi-mode fiberglass
Mechanical properties	Tensile strength short-term/long-term: 500 N
Material specifications	Flammability rating according to UL 94: V0 Outer sheath, material: LSFH
Connector	Connection 1 Handle color: black Insertion/withdrawal cycles: 500 (In the event of repeated cleaning) 500 Degree of protection: IP68 (IEC 60529) IP68 Ambient temperature (operation): -40°C ... 85°C (IEC 61300-2-22) Number of positions: 12 Locking type: Push Pull Connection 2 Handle color: black Insertion/withdrawal cycles: 500 (In the event of repeated cleaning) Ambient temperature (operation): -40°C ... 85°C (IEC 61300-2-22) Number of positions: 12 Degree of protection: IP68 (IEC 60529) Locking type: Push Pull
Cable/line	Cable length: 100 m Cable weight: 55.00 kg/km Cable type: Multimode fiberglass Zip cord, fiberglass Cable abbreviation: 12-.../H(ZNG)H-...70 External cable diameter: 7 mm Outer sheath, material: LSFH External sheath, color: black Wire diameter incl. insulation: 250 Ãµm Individual wire diameter: 250 Ãµm Smallest bending radius, fixed installation: Ã¢Ã¢°¥ 70 mm Tensile strength short-term/long-term: 500 N Lateral pressure short term: 500.00 N/cm Lateral pressure, long-term: 200.00 N/cm Halogen-free: complying with IEC 60754-1/2 FO cable Number of fibers: 12 Fiber: 62.5/125ÃÃµm OM1 Fiber type: Multimode fiberglass 62.5/125ÃÃµm Attenuation: typ. 0.15 dB Transmission medium: Multi-mode fiberglass
Environmental and real-life conditions	Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -40°C ... 85°C (IEC 61300-2-22) Shock: 50g, in accordance with IEC 61300-2-9
