| Product properties | Product type: Circular connectors (device side) Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Data management status Article revision: 05 Insulation characteristics Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V2 Outer sheath, material: PUR Conductor material: Bare Cu litz wires |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |

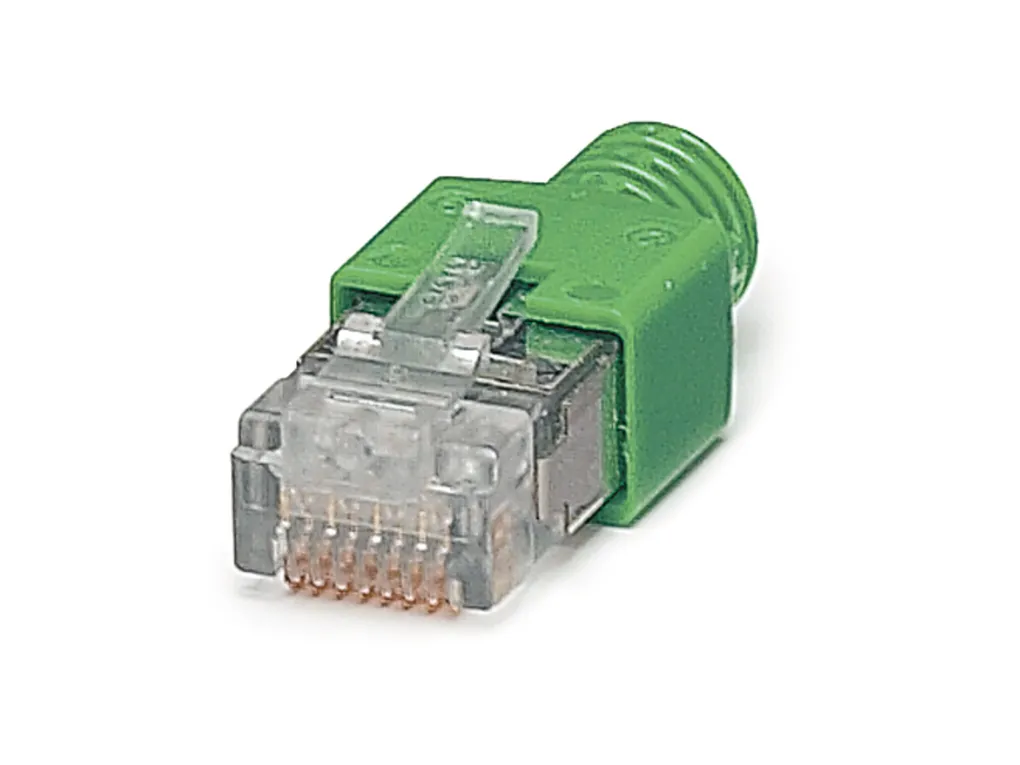

| Connector | Connection 1 Type: Flush-type female connector straight M12 Degree of protection: IP20 Connection 2 Type: Plug straight RJ45 Degree of protection: IP20 |
| Cable/line | Ethernet flexible CAT5, 4-pair [94B] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/11190/full/b1500?format=jpg Cable weight: 47 kg/km UL AWM Style: 20963 (80 °C/30 V) Number of positions: 8 Shielded: yes Cable type: Ethernet flexible CAT5, 4-pair [94B] Conductor structure: 4x2xAWG26/7, SF/UTP Signal runtime: 5.3 ns/m Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Wire diameter incl. insulation: 0.96 mm External cable diameter: 6.40 mm ñ0.2 mm Outer sheath, material: PUR External sheath, color: water blue RAL 5021 Conductor material: Bare Cu litz wires Material wire insulation: Foamed PE Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Thickness, outer sheath: 1.05 mm Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Optical shield covering: 70 % Insulation resistance: ââ°¥ 5 Gé*km Coupling resistance: ââ°¤ 100.00 mé/m (at 10 MHz) Loop resistance: ââ°¤ 290.00 é/km Wave impedance: 100 é ñ5 é (at 100 MHz) Cable capacity: 48 nF/km (at 1 kHz) Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 700 V (50 Hz, 1 min.) Test voltage Core/Shield: 700.00 V (50 Hz, 1 min.) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Tensile strength: ââ°¤ 100 N Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz) 62.3 dB (at 4 Ãà Hz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20 Ãà Hz) 48.9 dB (at 31.25 Ãà Hz) 44.4 dB (at 62.5 Ãà Hz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 Ãà Hz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20 Ãà Hz) 39.9 dB (at 31.25 Ãà Hz) 35.4 dB (at 62.5 Ãà Hz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 Ãà Hz) 24.1 dB (at 8 Ãà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20 Ãà Hz) 23.6 dB (at 31.25 Ãà Hz) 21.5 dB (at 62.5 Ãà Hz) 20.1 dB (at 100 MHz) Shield attenuation: 3.2 dB (with 1 MHz) 6 dB (at 4 Ãà Hz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20 Ãà Hz) 17.1 dB (at 31.25 Ãà Hz) 24.8 dB (at 62.5 Ãà Hz) 32 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Flame resistance: according to IEC 60332-1-2 Resistance to oil: in accordance with EN 60811-2-1 Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -20 °C ... 80 °C (Cable, flexible installation) Ambient temperature (installation): -20 °C ... 80 °C |
