1420603 PHOENIX CONTACT -

Mounting	Mounting type: Screw mounting
Product properties	Type: M12 Product type: Circular connectors (device side) Sensor type: PROFINET Number of positions: 4 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 (RJ45 und M12) Outer sheath, material: PE-X Conductor material: silver-plated Cu litz wires
Electrical properties	Rated voltage (III/3): 72 V (DC) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Transmission speed: 100 Mbps Wave impedance: 100 Ã©
Connector	Connection 1 Type: Plug straight M12 Number of positions: 4 Connection 2 Type: Plug straight RJ45 Number of positions: 4

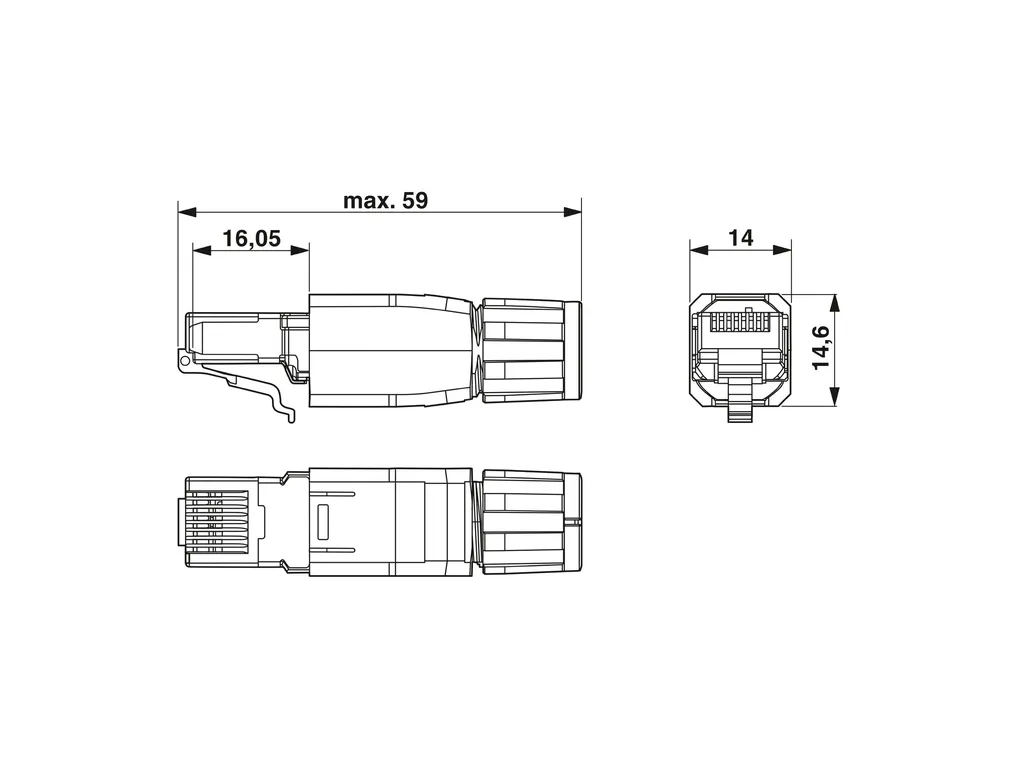

Cable/line	Cable length: 0.25 m PROFINET RADOX Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/35eeeb11fbacdc4187dc972d16fa1966/-S204x204-FJPG Shielded: yes Cable weight: 70 kg/km Cable type: PROFINET RADOX^Ã® railway application CAT5 Cable type (abbreviation): 937 Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps EtherCAT^Ã® CAT5 (IEC 11801), 100 Mbps Cable structure: 1x4xAWG22/7, SF/TQ External cable diameter: 6.6 mm Ã±0.4Ãmm Outer sheath, material: PE-X External sheath, color: black RALÃ9005 Thickness, outer sheath: approx. 1 mm Conductor material: silver-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: approx. 1.5 mm Single wire, color: white-blue, orange-yellow Overall twist: Star quad Shielding: Plastic-coated aluminum foil, tinned copper braided shield Nominal voltage, cable: 300 VÃAC Test voltage, cable: 2000 VÃAC (50 Hz, 5 minutes) Cable resistance: Ã¢Ã¢°¤ 54.4 Ã©/km Coupling resistance: 200.00 mÃ©/m (f Ã¢Ã¢°¤ 30 MHz) Wave impedance: 100 Ã© Ã±5ÃÃ© (f = 100 MHz) Working capacitance: Ã¢Ã¢°¤ 65 pF (Line-line) Ã¢Ã¢°¤ 100 pF (Line-shield) Signal speed: 75 c Minimum bending radius, fixed installation: 6 x D Damping: 2 dB (with 1 MHz) 4.4 dB (at 4 ÃÃHz) 7.4 dB (at 10 MHz) 14 dB (at 31.5ÃÃÃHz) 20 dB (at 62.5ÃÃÃHz) 26 dB (at 100 MHz) Remote crosstalk attenuation (FEXT): 78 dB (with 1 MHz) 77 dB (at 4 ÃÃHz) 70 dB (at 10 MHz) 65 dB (at 31.5ÃÃÃHz) 56 dB (at 62.5ÃÃÃHz) 48 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 73 dB (with 1 MHz) 70 dB (at 4 ÃÃHz) 65 dB (at 10 MHz) 57 dB (at 31.5ÃÃÃHz) 52 dB (at 62.5ÃÃÃHz) 48 dB (at 100 MHz) Return attenuation (RL): 25 dB (at 4 ÃÃHz) 30 dB (at 10 MHz) 30 dB (at 31.5ÃÃÃHz) 30 dB (at 62.5ÃÃÃHz) 28 dB (at 100 MHz) Shield attenuation: 40 dB (30 MHz Ã¢Ã¢°¤ f Ã¢Ã¢°¤ 100 MHz) Fire protection in rail vehicles: BSÃ6853 (Category Ia, Ib, II) GM/RTÃ2130 (Category Ia, Ib, II) ENÃ45545 (Risk level HL1 - HL3) DINÃ5510 (Fire protection level 1, 2, 3, 4) NFÃF16-101 (Category A1, A2, B) NFÃF16-101 (Class C/F0) NFPAÃ130 UNIÃCEIÃ11170 (Risk level LR1 - LR4) Halogen-free: in accordance with EN 50267-2-1 Resistance to oil: according to IRM 902, 72 h at 100°C Concentration of fumes: BS 6853 D.8.7 EN 61034-2 UL 1685, 12 (FT4) Fume toxicity: BSÃ6853 B.1 ENÃ50305, 9.2 Fume corrosiveness: ENÃ50267-2-2 Flame resistance: ENÃ60332-1-2 ENÃ50266 ENÃ60332-3-25 NFÃC32-070, 2.1 NFÃC32-070, 2.2 ULÃ1685, 12 (FT4) in accordance with ISOÃ6722-1 5.22 (UN ECE-R 118.01) Other resistance: Resistance to fuels according to IRM 903, 168 h at 70°C Ambient temperature (operation): -40°C ... 90°C (Cable, flexible installation) -50°C ... 90°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 70°C (Plug / socket)
Standards and regulations	Flame resistance: ULÃ1685 (CSA FT 4)
