| Product properties | Product type: Data cable preassembled Sensor type: VARAN Number of positions: 6 Application: Standard No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: VARAN Signal type/category: VARAN, 100 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 2 A Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 (Socket) 4 (Socket) 6 (Socket) | BU (Power) 7 (Socket) | BN (Power) 5 (Socket) | GNWH (RD+) 8 (Socket) | GN (RD-) 2 (Socket) | OGWH (TD+) 3 (Socket) | OG (TD-) |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 SPEEDCON Number of positions: 6 Coding type: A (Standard) Ambient temperature (operation): -25°C ... 90°C Locking type: SPEEDCON |

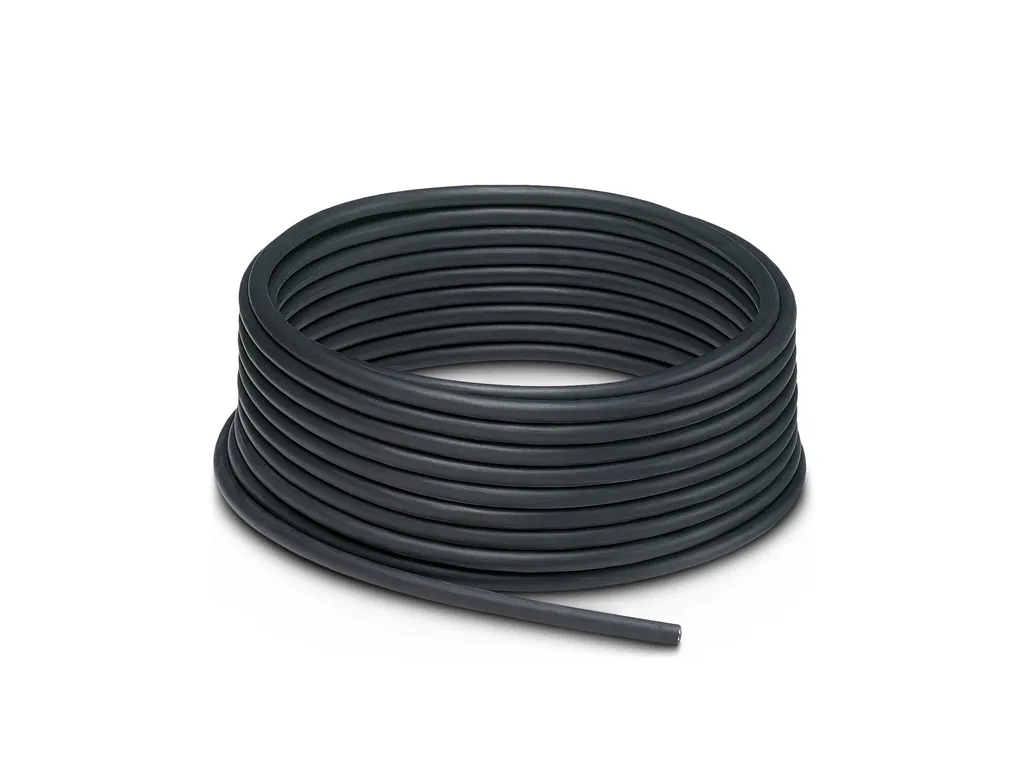

| Cable/line | Cable length: 2 m VARANÃ[970] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4987438ba5ff14418742a25b75ff659b/-S204x204-FJPG Cable weight: 81 kg/km Number of positions: 6 Shielded: yes Cable type: VARANÃ[970] Conductor structure: 1x2xAWG22/19 + 1x4xAWG24/19 Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor cross section: 4x 0.25 mm² (Signal line) 2x 0.38 mm² (Power supply) Wire diameter incl. insulation: 1.35 mm (Signal line) 1.5 mm (Power supply) External cable diameter: 7.8 mm ñ0.2Ãmm Outer sheath, material: SANTOPRENE halogen-free External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material, filler: Yarn Material wire insulation: PP Single wire, color: brown, blue, white/orange, white/green, green, orange Type of pair shielding: Tinned copper braided shield, 95 % covering Overall twist: 1 star quad and 2 wires with 2 fillers Max. conductor resistance: 77 é/m (Data cable) Insulation resistance: 5 Gé*km (Data cable) Wave impedance: 100 é ñ15Ã% Working capacitance: 50 nF (Data cable) Nominal voltage, cable: 125 V (Data cable) 48 V (Power supply) Test voltage: 2000 V (Power supply) max. 700 VÃAC (Data cable) Smallest bending radius, fixed installation: ââ°¥ 93 mm Smallest bending radius, movable installation: ââ°¥ 93 mm Max. bending cycles: 3000000 Halogen-free: in accordance with DINÃENÃ50267-2-1 Ambient temperature (operation): -20°C ... 80°C (Cable) Ambient temperature (installation): 0°C ... 50°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 |
