| Product properties | Product type: Sensor/actuator cable with valve connector Number of positions: 3 No. of cable outlets: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6.6 Contact surface material: Sn |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 24 V AC 24 V DC Nominal current IN: 4 A |
| Signaling | Status display: 1 LED Status display present: Yes |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Valve connector A Number of positions: 3 Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing) |

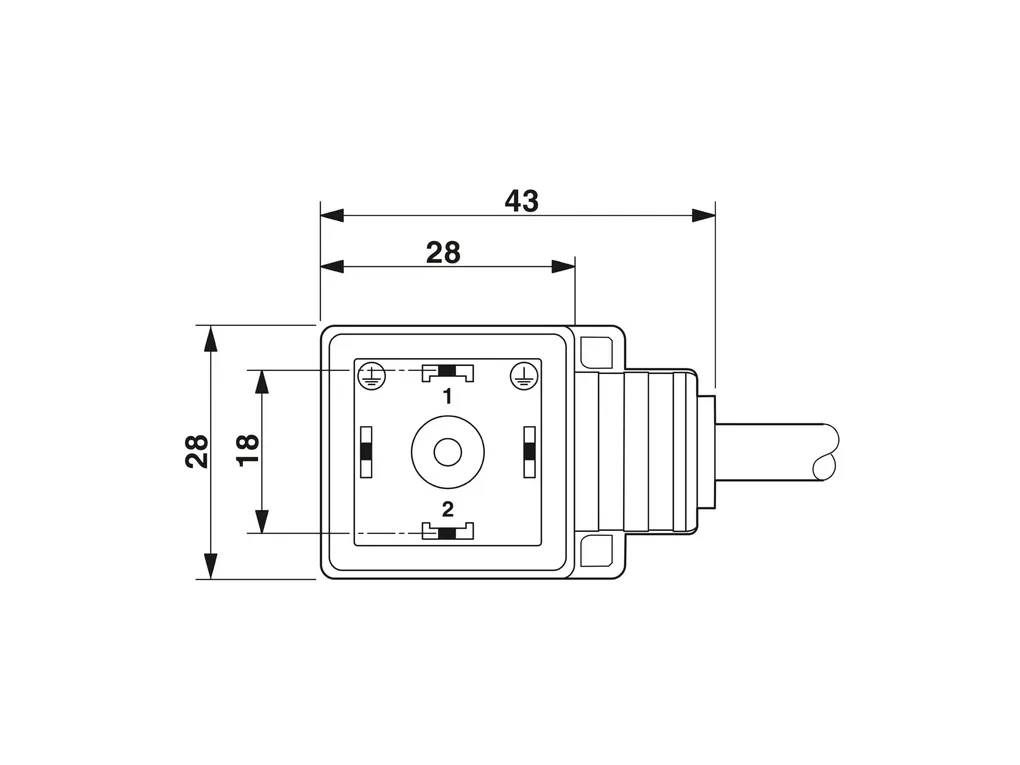

| Cable/line | Cable length: 1.5 m PUR/PVC, 0.75 mm², black [116] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9412/full/b1500?format=jpg Cable weight: 53.4 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR/PVC, 0.75 mm², black [116] Conductor structure signal line: 24x 0.20 mm AWG signal line: 18 Conductor cross section: 3x 0.75 mm² Wire diameter incl. insulation: 1.7 mm ñ0.05 mm External cable diameter: 5.80 mm ñ0.2 mm Outer sheath, material: PUR External sheath, color: black RAL 9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: 26 é/km (at 20 °C) Insulation resistance: ââ°¥ 20 Mé*km Nominal voltage, cable: 300 V Test voltage: 1200 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 29 mm Smallest bending radius, movable installation: 58 mm Dynamic load capacity (bending): Max. bending cycles: 1000000, Traversing path: 10 m, Traversing rate: 2 m/s, Acceleration: 2.5 m/s² Flame resistance: DIN VDE 0482 DIN EN 50265-2-1 in acc. with UL FT-2 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: Low adhesion Special properties: flexible Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20 °C ... 85 °C (valve plug) |
| Standards and regulations | Standard designation: Valve connector Standards/specifications: EN 175301-803 |
