1519778 PHOENIX CONTACT -

Product properties	Product type: M8/M12 adapters Number of positions: 4 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 30 VÃAC 30 VÃDC Nominal current I_N: 4 A
Signaling	Status display: No Status display present: No

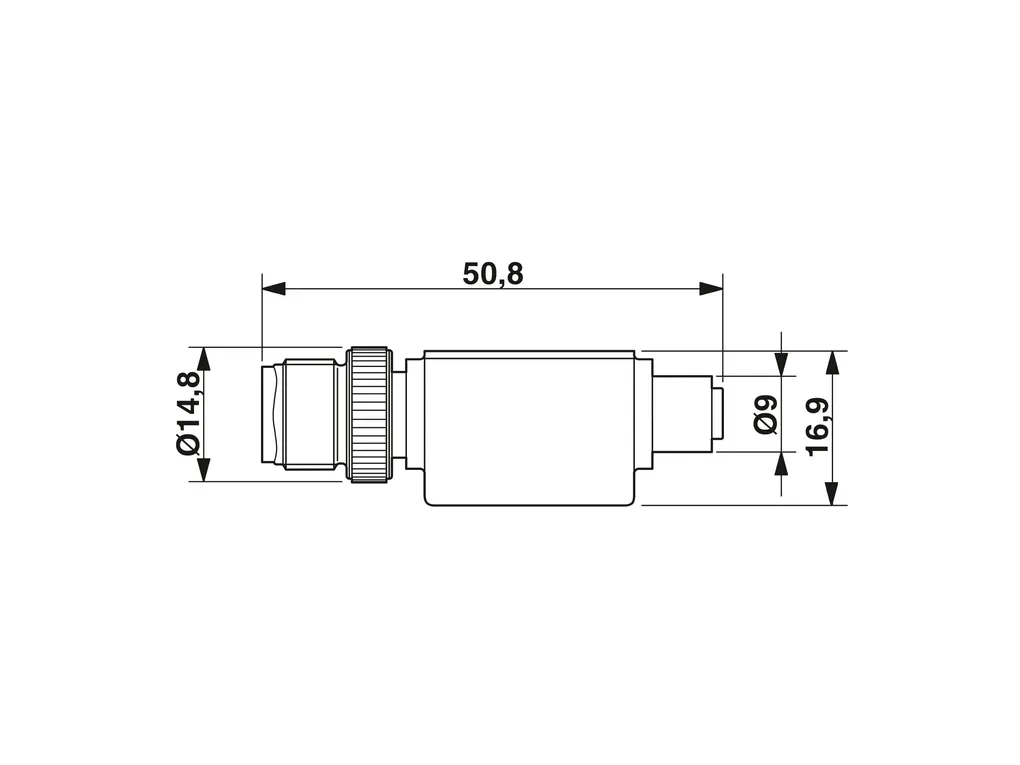

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0babf9934d08bd448455bf97ad30a1a4/-S204x204-FJPG Width: 17 mm Height: 14.8 mm Length: 50.8 mm
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Connector	Connection 1 Type: Plug straight M12 Number of positions: 4 Coding type: A Connection 2 Type: Socket straight M8 Snap-in Number of positions: 4 Coding type: A Locking type: Snap-in
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C
Standards and regulations	Standard designation: M12 connector M8 connector Standards/specifications: IEC 61076-2-101 IEC 61076-2-104
