PHOENIX CONTACT 1542648
PHOENIX CONTACT 1542648
PHOENIX CONTACTDisponibile

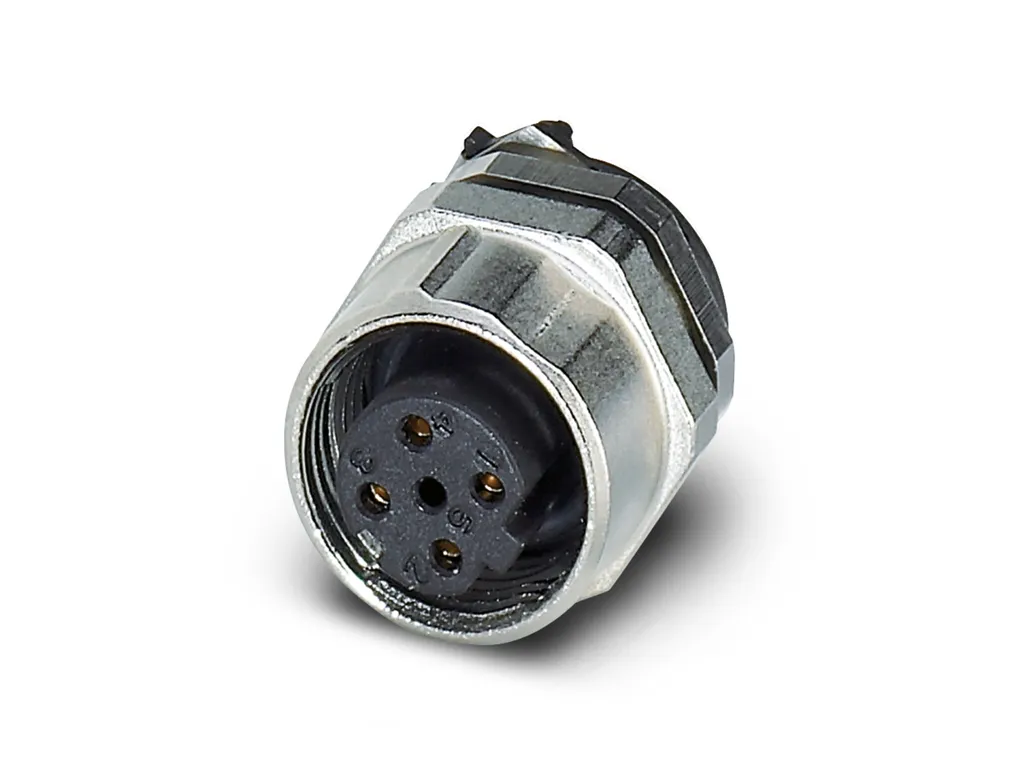

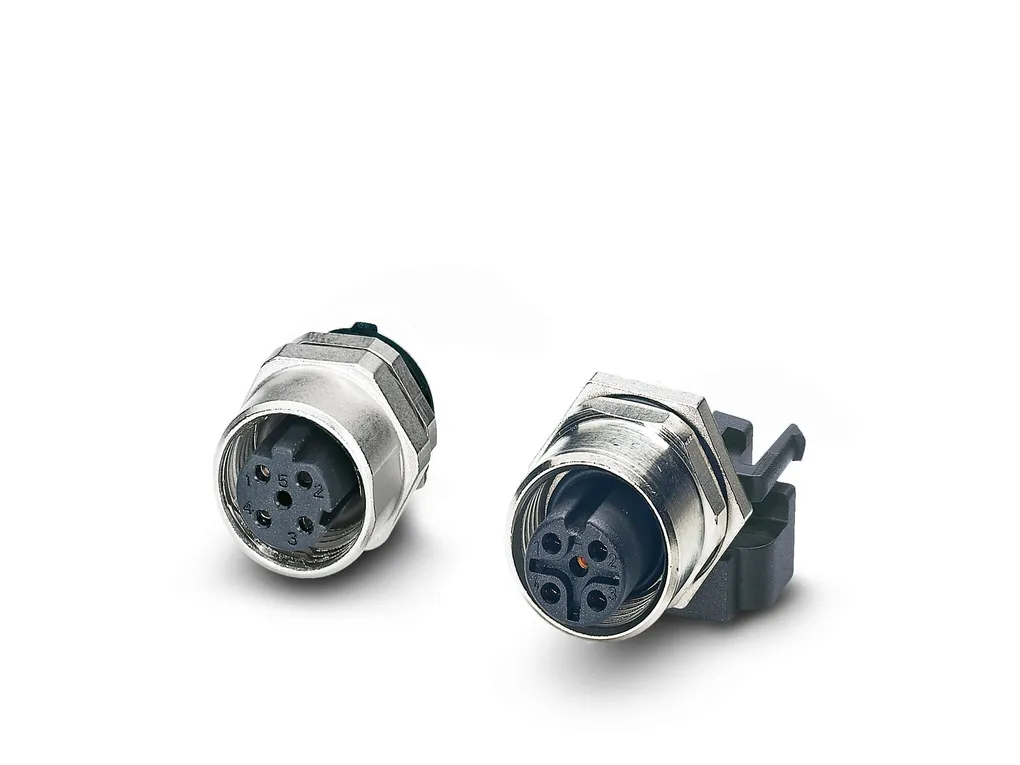

SACC-DSIV-FSD-4CON-L180 SCOTHR - Device connector, rear mounting

Device connector, rear mounting, 4-position, Socket, straight, M12-SPEEDCON, coding: D, Rear mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239956
Cod. Articolo: 1542648 copia - copy
Cod. Fornitore: 1542648 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling)
Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M12 x 1 With flat nut
Assembly instructions: With flat nut
Connection method: THR solder connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 4
Shielded: no
Coding: D
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: HB
Seal material: FKM / EPDM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PPA
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 250 V
Nominal current IN: 4 A
Connection dataConductor connection
Connection method: THR solder connection
Contact connection type: Socket
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: D
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_01641.pdf

Design-In_00035.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_09278.pdf

Technical_drawing_16213.pdf
