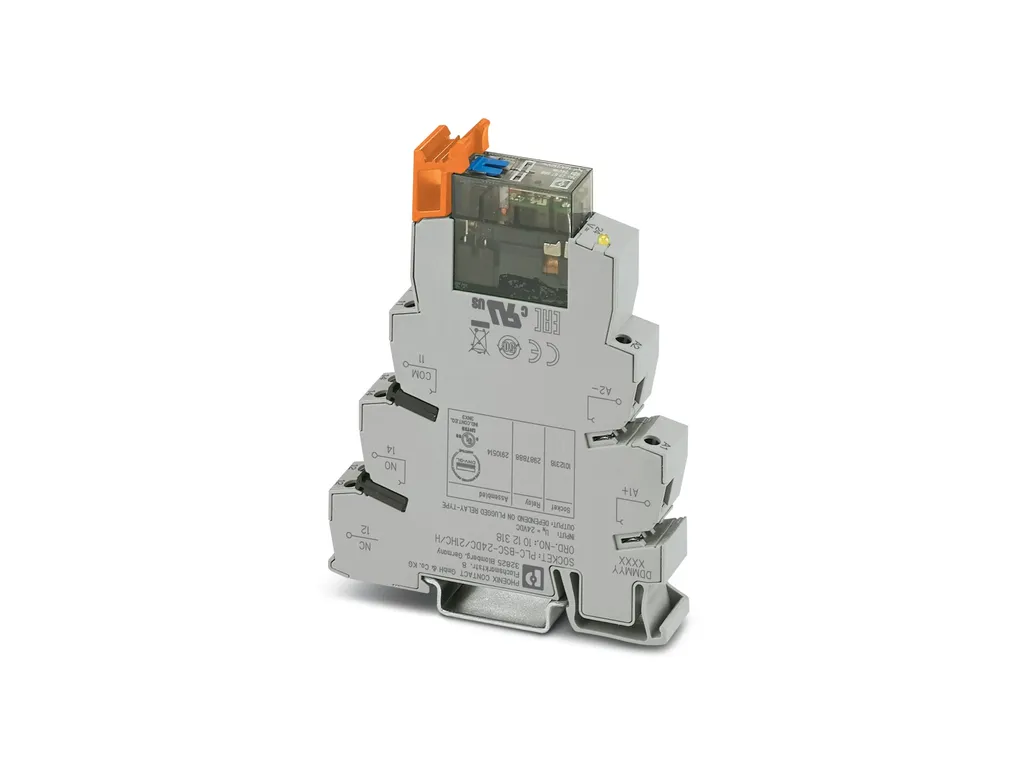

| Product properties | Product type: Relay Module Product family: RIFLINE complete Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Data management status Date of last data management: 03.09.2024 Article revision: 01 Insulation characteristics Insulation: safe isolation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.22 W Test voltage (Winding/contact): 4 kVrms (50 Hz, 1 min., winding/contact) Rated insulation voltage: 250 V AC Rated surge voltage: 6 kV |
| Input data | Coil side Nominal input voltage UN: 24 V DC Input voltage range: 19.2 V DC ... 36 V DC (20 °C) Input voltage range in reference to UN: see diagram Drive and function: monostable Drive (polarity): non-polarized Typical input current at UN: 9 mA Typical response time: 5 ms Typical release time: 8 ms Coil voltage: 24 V DC Protective circuit: Freewheeling diode Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1 changeover contact Type of switch contact: Single contact Contact material: AgSnO Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (100 mA) Limiting continuous current: 6 A Min. switching current: 10 mA (12 V) Interrupting rating (ohmic load) max.: 140 W (24 V DC) 20 W (48 V DC) 18 W (60 V DC) 23 W (110 V DC) 40 W (220 V DC) 1500 VA (250 V AC) Utilization category CB Scheme (IEC 60947-5-1): AC15, 3 A/250 V (N/O contact) AC15, 1 A/250 V (N/C contact) DC13, 1.5 A/24 V (N/O contact) DC13, 0.2 A/110 V (N/O contact) DC13, 0.1 A/220 V (N/O contact) |
| Connection data | Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) Conductor cross section AWG: 24 ... 16 |
| Dimensions | Width: 6.2 mm Height: 93 mm Depth: 78 mm |
| Material specifications | Color: gray (RAL 7042) Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT III (Relay) Ambient temperature (operation): -40 °C ... 60 °C Ambient temperature (storage/transport): -40 °C ... 85 °C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group EN 60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly note: in rows with zero spacing Mounting position: any |
