1608210 PHOENIX CONTACT -

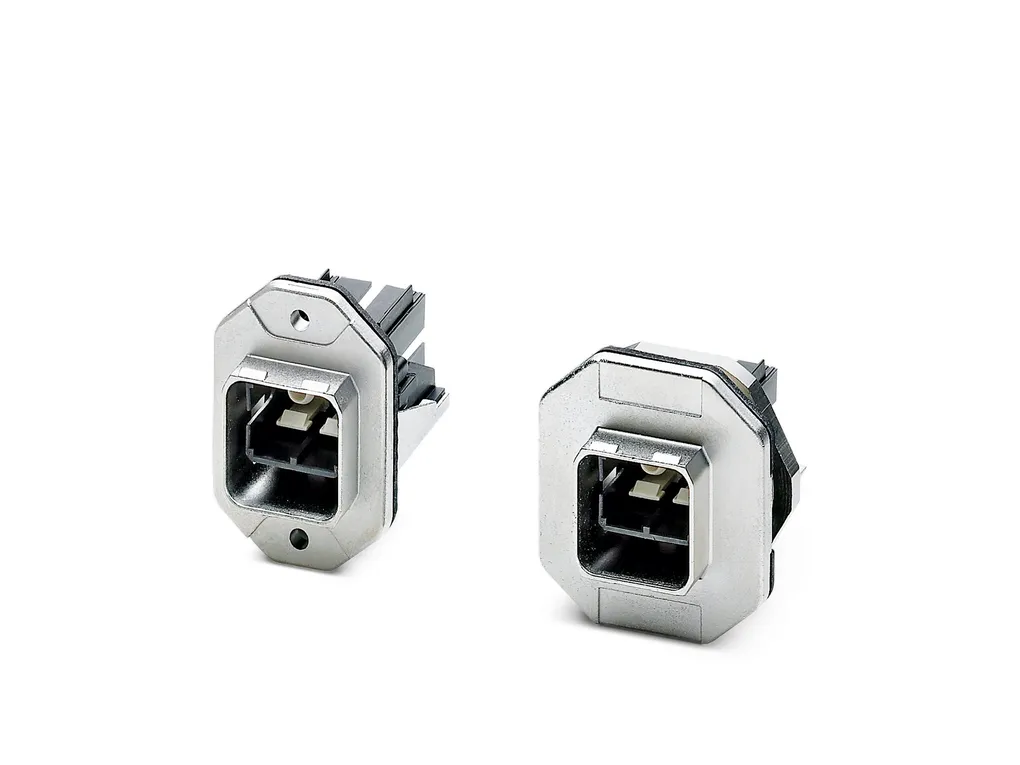

VS-PPC-F1-SCRJ-POBK-1RF - Panel mounting frames

SC-RJ panel mounting frame, IP67, for push-pull interlocking, plastic, with Freenet system, for rectangular mounting cutout, with seal and SC-RJ coupling (for POF, PCF, andGOF), without mounting screws

Cod. Articolo: 1608210 copia - copy

Cod. Fornitore: 1608210 copia - copy

PHOENIX CONTACT

Product properties	Type: SC-RJ Product type: Panel mounting frame Number of positions: 2 Connection profile: SC-RJ Application: Freenet Number of slots: 1 Insulation characteristics Degree of pollution: 2
Electrical properties	Transmission medium: FO
Connection data	Connection technology Connection method: Spring-cage connection
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/14c2a0ededfe38468c2d854b7850a2b7/-S204x204-FJPG Width: 22.2 mm Height: 42 mm
Material specifications	Color: black Material: Plastic Flammability rating according to UL 94: V0 Seal material: NBR Housing surface material: PA, light gray Contact surface material: Au/Ni Contact carrier material: Polyester GF Housing material: Plastic
Cable/line	FO cable Number of fibers: 2 Fiber: POF, PCF, GOF Fiber type: GOF, PCF, POF Transmission medium: FO
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (IP65/67) IP65/IP67 Ambient temperature (operation): -20°C ... 70°C
Mounting	Mounting type: Front mounting Connection method: Spring-cage connection
