| Mounting | Assembly instructions: If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. Connection method: QUICKON fast connection |

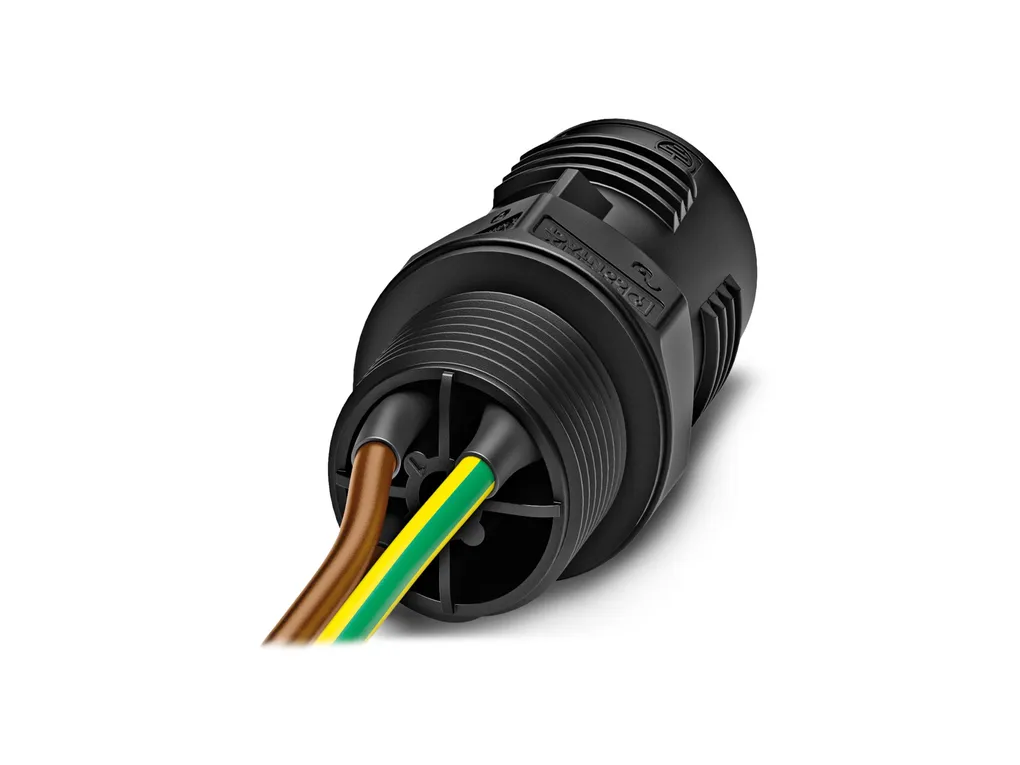

| Product properties | Product type: Cable connector Number of positions: 4 Position marking: 1, 2, 3, 4 Number of connections: 4 Number of connections per position: 1 Coding: no Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

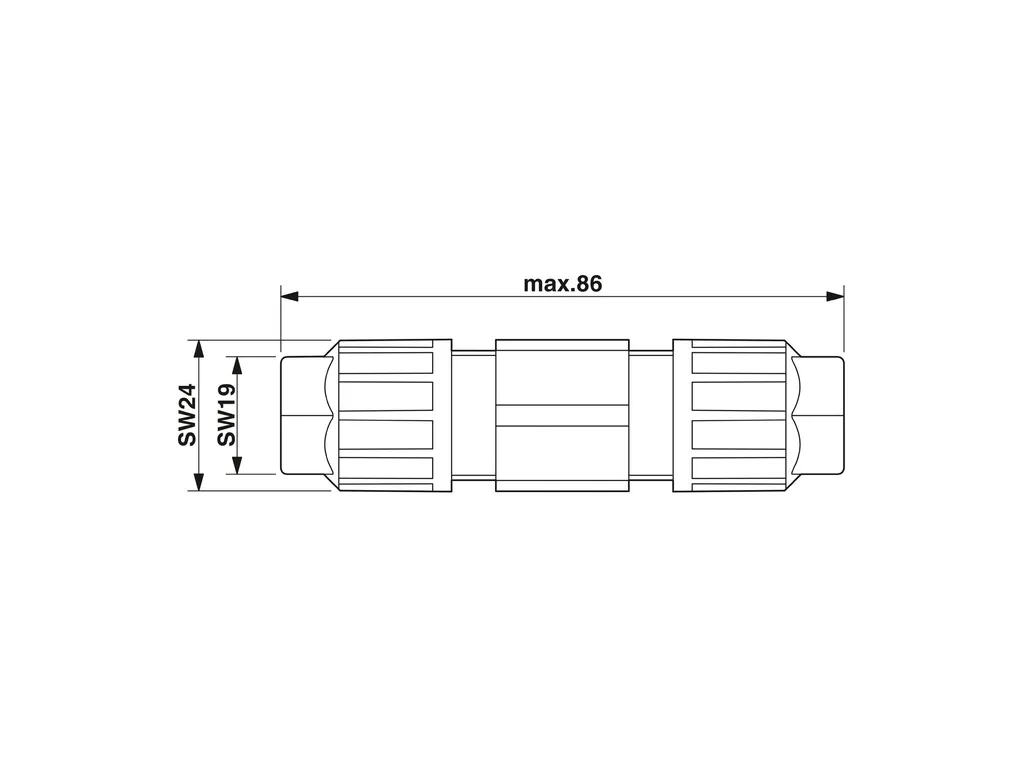

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/dbe797d744d8d04d968213dd66fa0a5c/-S204x204-FJPG Width: 24 mm Height: 24 mm Length: 86 mm Diameter: 24 mm External dimensions Outside diameter: 6 mm ... 12 mm |
| Connection data | Connection technology Connection method: QUICKON fast connection Connection system, internal: IDC connection Connection technology: QUICKON connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Tightening torque: 3 Nm Tightening torque Union nut: 3 Nm Wrench size Union nut: 19 mm Wrench size Contact carrier: 24 mm |
| Electrical properties | Rated surge voltage (II/2): 6 kV Rated surge voltage (III/2): 6 kV Rated surge voltage (III/3): 6 kV Rated current: 15 A Contact resistance: ââ°¤ 5 mé rated voltage (II/2): 1000 V rated voltage (III/2): 800 V Rated voltage (III/3): 500 V Nominal voltage UN: 500 VÃAC 500 VÃDC Nominal current IN: 15 A |
| Material specifications | Material: PA CuZn tin-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC / PE |
| Cable/line | Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 6 mm ... 12 mm Wire diameter including insulation: 1.8 mm ... 3 mm Position marking: 1, 2, 3, 4 Material wire insulation: PVC / PE |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -40°C ... 80°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 80°C |
