1688816 PHOENIX CONTACT -

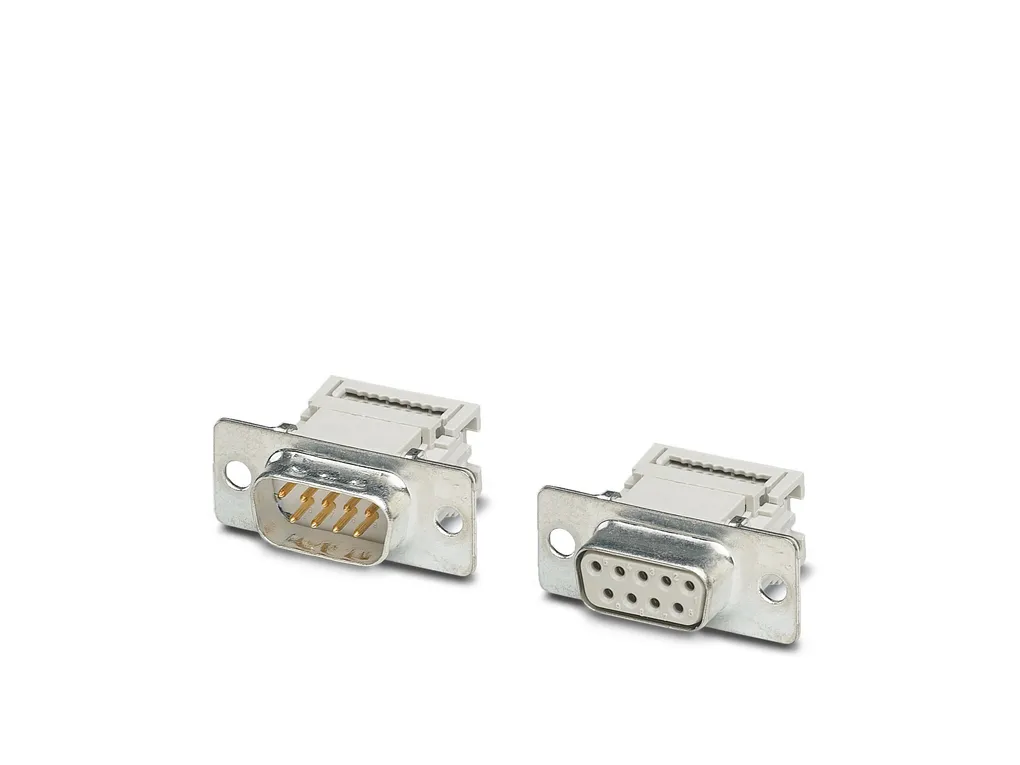

VS-09-ST-DSUB-FK - D-SUB contact insert

D-SUB contact insert, shell size 1, with nine signal contacts, type of contact pin, flat-ribbon cable connection, angled, fixing with a 3 mm hole, for panel mounting frame VS-09-...

Cod. Articolo: 1688816 copia - copy

Cod. Fornitore: 1688816 copia - copy

PHOENIX CONTACT

Product properties	Type: D-SUB Male Product type: Male insert Number of positions: 9 Connection profile: D-SUB 9 Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 125 V Rated surge voltage: 1 kV Rated current: 1.5 A (at 20Ã°C) Test voltage: 1000 V Transmission medium: Copper
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b078aad41fe45a45ba05163c9f8101bd/-S204x204-FJPG Width: 18.5 mm Height: 31.19 mm Length: 12.93 mm
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Hard gold-plated over nickel Contact carrier material: Polyester GF Housing material: Steel, tin-plated
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 50
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -55°C ... 125°C
Mounting	Mounting type: Hole Connection method: Flat-ribbon cable connection
