2744348 PHOENIX CONTACT -

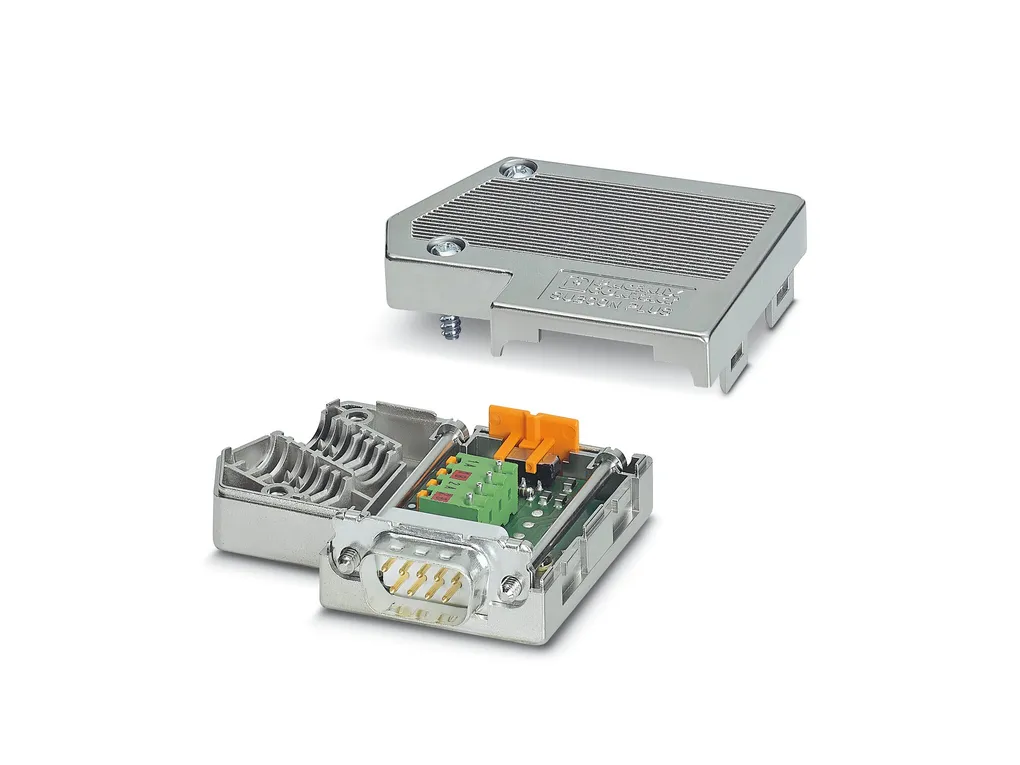

SUBCON-PLUS-PROFIB - D-SUB bus connector

D-SUB plug, 9-pos., pin, axial version with two 35° cable entries, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; spring-cage connection terminal blocks

Cod. Articolo: 2744348 copia - copy

Cod. Fornitore: 2744348 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China.
Product properties	Product type: Data plug MTTF: 6706 Years (SNÃ29500 standard, temperatureÃ25°C, operating cycleÃ21%) 1817 Years (SNÃ29500 standard, temperatureÃ40°C, operating cycleÃ34.25%) 155 Years (SNÃ29500 standard, temperatureÃ40°C, operating cycleÃ100%) Pin assignment: 3, 5, 6, 8
Electrical properties	Maximum power dissipation for nominal condition: 0.025 W Nominal voltage U_N: 5 V Nominal current I_N: 100 mA Transmission medium: Copper
Connection data	D-SUB connection Connection method: D-SUB connector PCB connection Connection method: Spring-cage connection Stripping length: 5 mm Conductor cross section, rigid min.: 0.12 mm² Conductor cross section, rigid max.: 0.5 mm² Single-wire/terminal point, rigid AWG min.: 26 Single-wire/terminal point, rigid AWG max.: 20
Interfaces	Bus system: PROFIBUS DP Signal: PROFIBUS

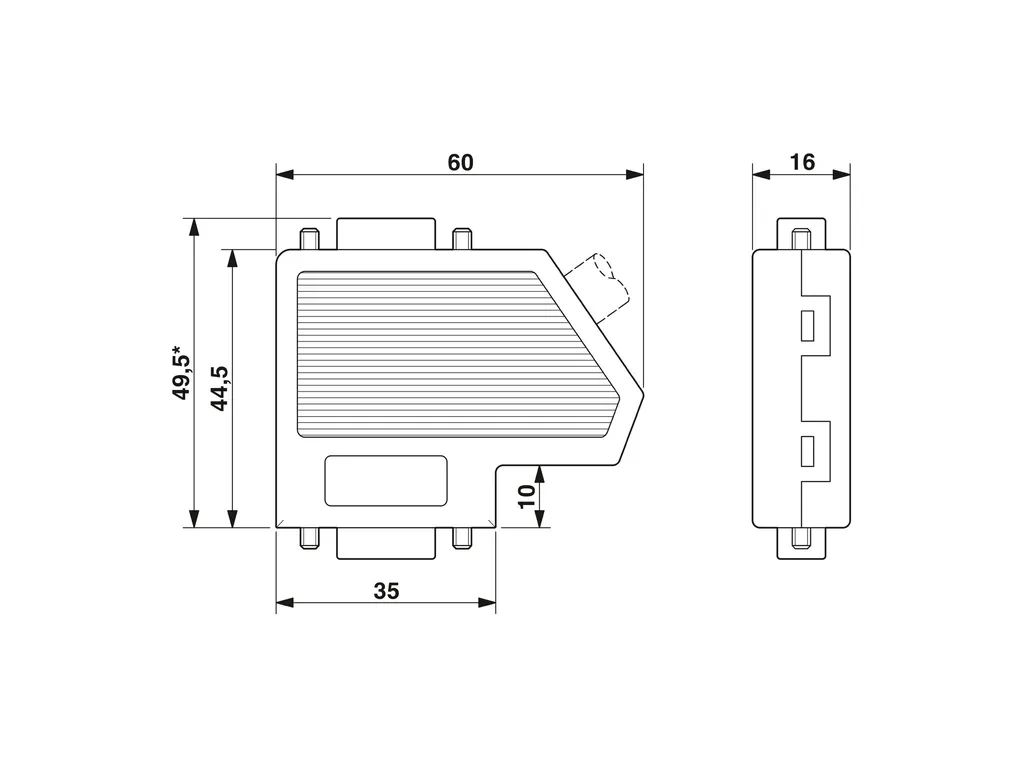

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4bafdcd80a9c0d458294db6be4985a0e/-S204x204-FJPG Width: 16 mm Height: 49.5 mm Length: 60 mm
Material specifications	Material: ABS, metal-plated
Cable/line	External cable diameter (): 7.6 mm ... 8.4 mm (Incoming bus line)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 200
Environmental and real-life conditions	Ambient conditions Degree of protection: IP40 Ambient temperature (operation): -20°C ... 75°C Ambient temperature (storage/transport): -25°C ... 80°C Altitude: Ã¢Ã¢°¤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Approvals	EAC Identification: EAC ATEX Identification: Ã¯Ã II 3 G Ex nA IIC T4 Gc X Note: Please follow the special installation instructions in the documentation! Corrosive gas test Identification: ISA-S71.04-1985 G3 Harsh Group A
Standards and regulations	Free from substances that could impair the application of coating: in accordance with VW-AUDI-Seat central standard P-VW 3.10.7 57 65 0
