2813473 PHOENIX CONTACT -

MCR-SL-S-400-U - Current transducers

MCR current measuring transducer, for measuring sinusoidal and non-sinusoidal alternating currents, input current 0...400 A, output voltage 0...(5) 10 V

Cod. Articolo: 2813473 copia - copy

Cod. Fornitore: 2813473 copia - copy

PHOENIX CONTACT

Product properties	Product type: Current transducer Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 1 W Test voltage input/output: 4.13 kV AC (50ÃHz, 60Ãs) Step response (10-90%): < 340 ms Maximum temperature coefficient: < 0.035 %/K Maximum transmission error: < 1 % (of final value) Rated insulation voltage: 300 VÃAC (to earth) Supply Nominal supply voltage: 24 VÃDC Supply voltage range: 20 VÃDC ... 30 VÃDC Max. current consumption: < 30 mA
Input data	Signal Configurable/programmable: Yes Current input signal: 0 A ... 400 A Measurement Input current range: 0 A AC ... 200 A AC 0 A AC ... 300 A AC 0 A AC ... 400 A AC Setting range for min. input current: 0 A AC ... 200 A AC Setting range for max. input current: 0 A AC ... 400 A AC Overload capacity: Depending on laid conductor Surge strength: Depending on through connected conductor Frequency measuring range: 30 Hz ... 6000 Hz Curve type: Sinusoidal and non-sinusoidal Operate threshold: 1 % (of final value)
Output data	Signal: Voltage Voltage output signal: 0 V ... 5 V 0 V ... 10 V Max. voltage output signal: (0ÃVÃ...Ã10ÃV) 14ÃV, (0ÃVÃ...Ã5ÃV) 7ÃV Load/output load voltage output: Ã¢Ã¢°¥ 10 kÃ©
Connection data	Connection method: Screw connection Through connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm ... 0.6 Nm (4,4Ã...Ã5,31Ãlbf-in.)

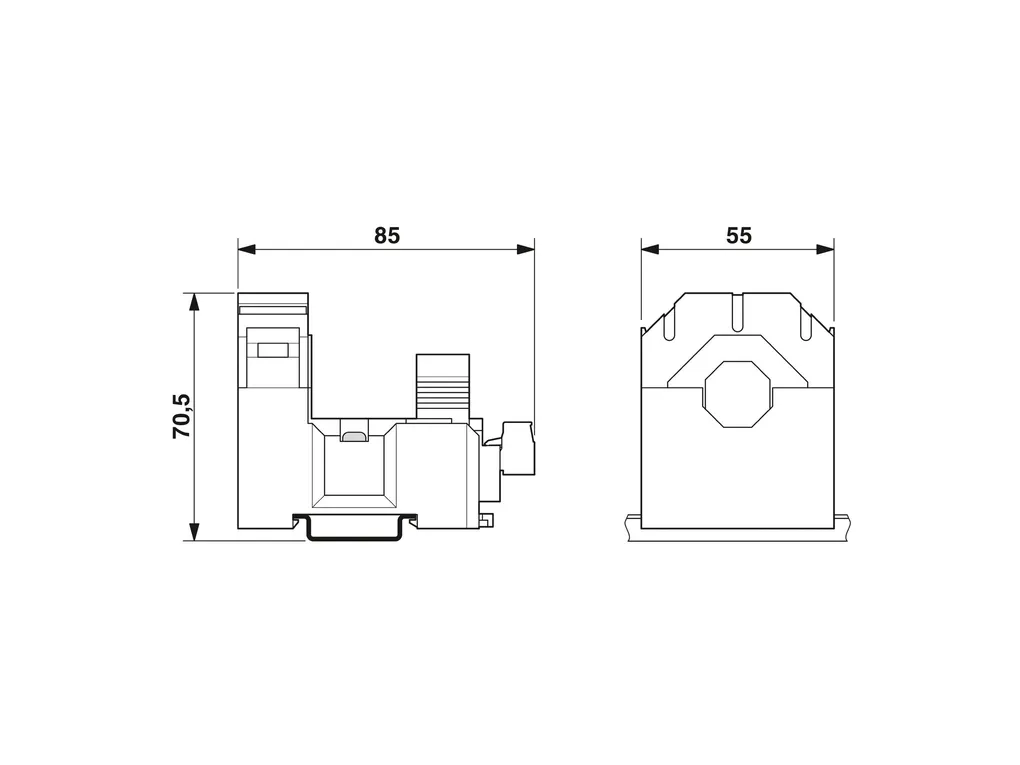

Dimensions	Item dimensions Width: 55 mm Height: 85 mm Depth: 70.5 mm Circular conductor Diameter: Ã¢Ã¢°¤ 18.5 mm
Material specifications	Housing material: Polyamide PA non-reinforced
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508 Class I, Div. 2, Groups A, B, C, D T4A Class I, Zone 2, Group IIC T4A Or Non-Hazardous Locations only
Mounting	Mounting type: DIN rail mounting Mounting position: any
