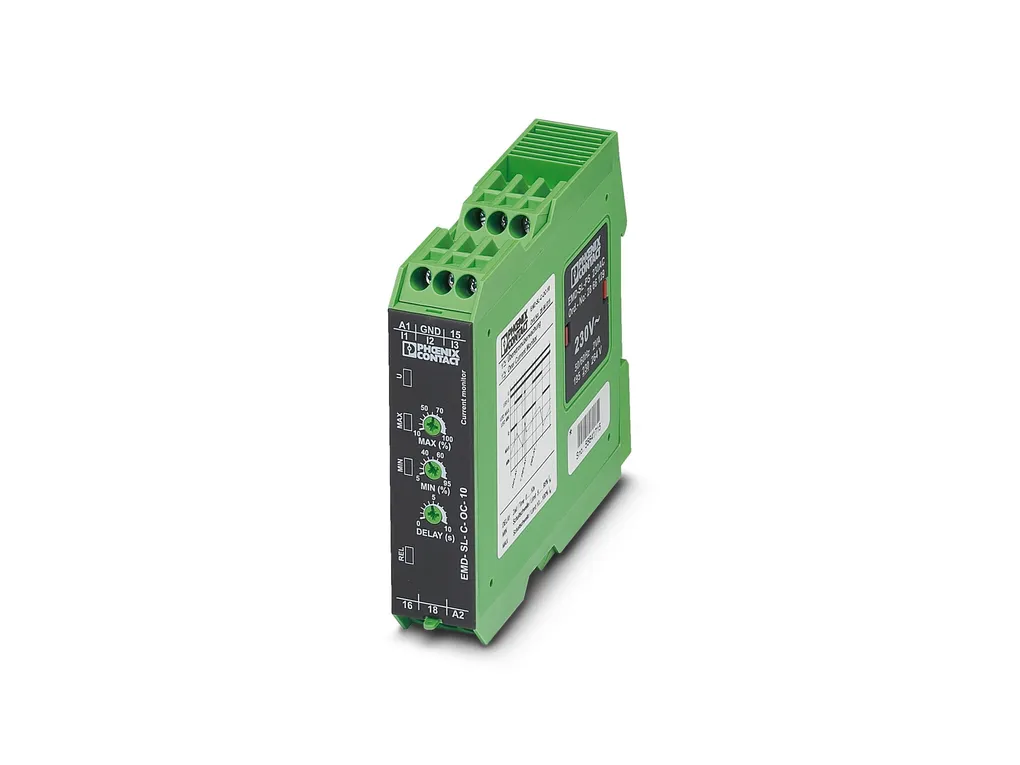

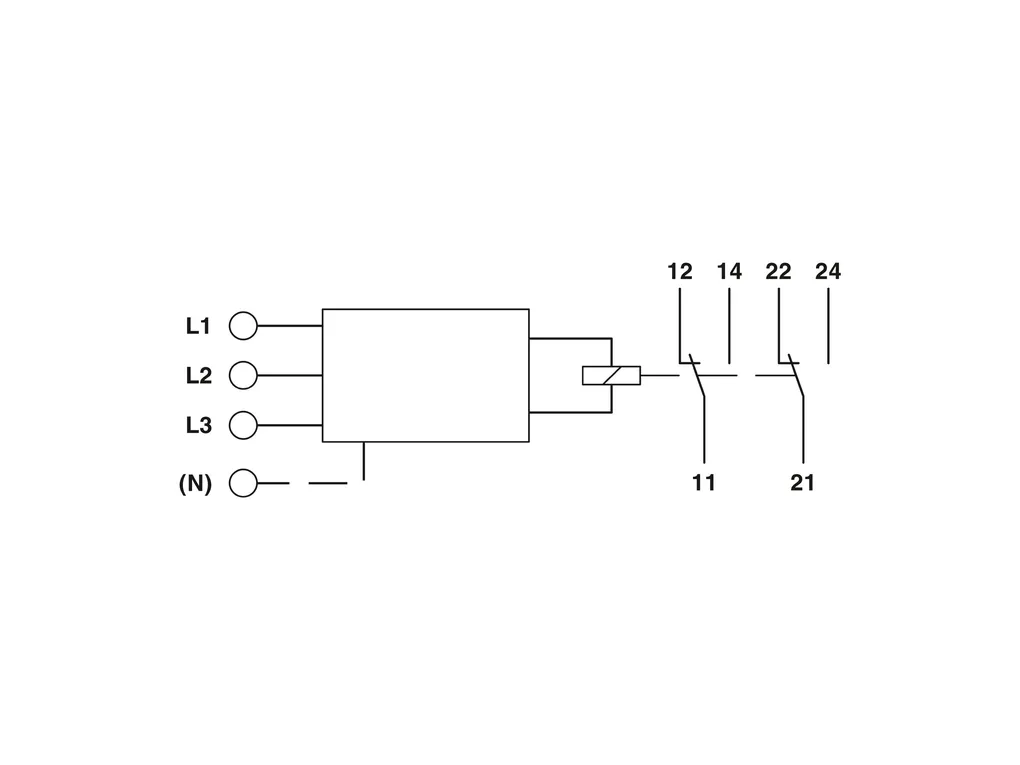

| Product properties | Product type: Phase monitoring relay Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: 2x 105 cycles at ohmic load, 1000 VA Maximum power dissipation for nominal condition: 1 W Mains type: 3-phase Rated insulation voltage: 300 V Rated surge voltage: 4 kV Supply Supply voltage: From the measured voltage Nominal power consumption: 9 VA |
| Input data | Input name: Measuring input Measured value: AC sine (48 Hz ... 63 Hz) Nominal input voltage UN: 400 V (3 N ~ 400/230 V) Maximum input voltage: 3 N ~ 457/264 V Input resistance of voltage input: 15 ké Frequency range: 48 Hz ... 63 Hz Setting range for response delay: ââ°¤ 350 ms (fixed setting) Setting range for starting delay: ââ°¤ 500 ms (fixed setting) Min setting range of the voltage threshold value: 342 VÃAC Max. setting range of the voltage threshold value: 457 VÃAC Function: Phase sequence Phase failure Asymmetry Asymmetry: Fixed, approx. 30 % Recovery time: < 100 ms |
| Output data | Switching Contact switching type: 2 floating changeover contacts Maximum switching voltage: 250 VÃAC (in acc. with IEC 60664-1) Interrupting rating (ohmic load) max.: 750 VA (3 A/250 V AC, module aligned, ââ°¤ 5 mm spacing) 1250 VA (5 A/250 V AC, module not aligned, ââ°¥ 5 mm spacing) Output fuse: 5 A (fast-blow) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Conductor cross section rigid: 0.5 mm² ... 2.5 mm² Conductor cross section flexible: 0.25 mm² ... 2.5 mm² Conductor cross section AWG: 20 ... 14 |
| Dimensions | Width: 22.5 mm Height: 90 mm Depth: 113 mm |
| Material specifications | Housing insulation material: Polyamide PA, self-extinguishing |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Housing): IP40 (Housing) Degree of protection (Connection terminal blocks): IP20 (Connection terminal blocks) Ambient temperature (operation): -25°C ... 55°C -25°C ... 40°C (corresponds to ULÃ508) Ambient temperature (storage/transport): -25°C ... 70°C Climatic class: 3K3 (in acc. with EN 60721) Permissible humidity (operation): 15 % ... 85 % |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508 |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-3 |
| Standards and regulations | Standards/regulations: ENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715 Mounting position: any |
