2906243 PHOENIX CONTACT -

MACX MCR-VDC-PT - Voltage measuring transducers

MACX MCR voltage transducers for DC voltages of 0... (+/-) 20 V DC to 0.. .(+/-) 660 V DC, output signal (+/-) 10 V/ (+/-)20 mA

Cod. Articolo: 2906243 copia - copy

Cod. Fornitore: 2906243 copia - copy

PHOENIX CONTACT

Product properties	Product type: Voltage transducer Insulation characteristics Pollution degree: 2
Electrical properties	Alignment span: Ã± 20 % Alignment zero: Ã± 20 % Electrical isolation: IEC 61010-2-30 (Measuring category II (1000 V)Measuring category III (600 V)Measuring category IV (300 V)) IEC 61010-1 (Overvoltage category III at 300ÃVOvervoltage category IV at 150ÃV) Test voltage: 5.3 kV AC (50ÃHz, 60Ãs) 2.2 kV AC (50ÃHz, 60Ãs) Maximum power dissipation for nominal condition: 1.2 W Protective circuit: Surge protection; 33ÃV suppressor diode Step response (10-90%): < 16 ms Maximum temperature coefficient: < 0.015 %/K Maximum transmission error: < 1 % (of measuring range end value) Supply Nominal supply voltage: 24 VÃDC (-20Ã%Ã...Ã+25Ã%) Supply voltage range: 19.2 VÃDC ... 30 VÃDC Max. current consumption: < 60 mA

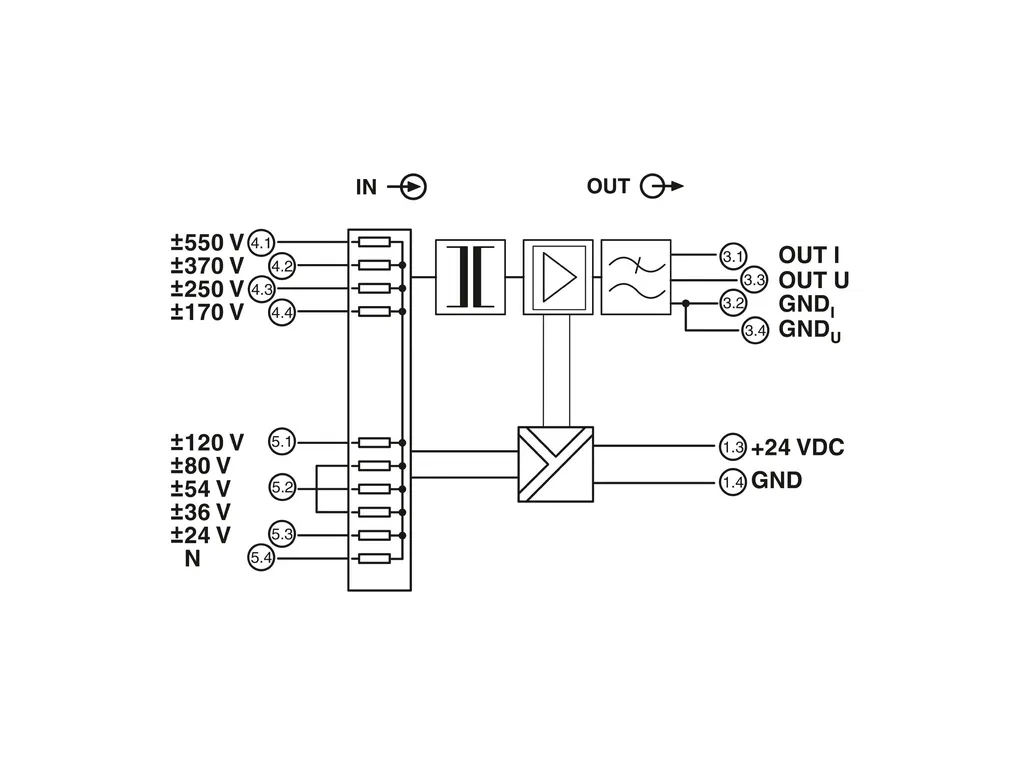

Input data	Measurement Configurable/programmable: Yes Input voltage range: -550 VÃDC ... 550 VÃDC Input resistance of voltage input: 5500 kÃ© Maximum input voltage: Ã± 660 VÃDC Impulse form: DC voltage MeasurementÃ¢Ã¢¬Ã¢¹ Input voltage range: -370 VÃDC ... 370 VÃDC Input resistance of voltage input: 3700 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -250 VÃDC ... 250 VÃDC Input resistance of voltage input: 2500 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -170 VÃDC ... 170 VÃDC Input resistance of voltage input: 1700 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -120 VÃDC ... 120 VÃDC Input resistance of voltage input: 1200 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -80 VÃDC ... 80 VÃDC Input resistance of voltage input: 800 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -54 VÃDC ... 54 VÃDC Input resistance of voltage input: 800 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -36 VÃDC ... 36 VÃDC Input resistance of voltage input: 800 kÃ© MeasurementÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Input voltage range: -24 VÃDC ... 24 VÃDC Input resistance of voltage input: 240 kÃ©
Output data	Signal: Voltage Voltage output signal: -10 V ... 10 V Max. voltage output signal: Ã¢Ã¢°¤ 11 V Load/output load voltage output: > 10 kÃ© Ripple: 50 mV Signal: Current Current output signal: -20 mA ... 20 mA Max. current output signal: Ã¢Ã¢°¤ 22 mA Load/output load current output: < 500 Ã© Max. capacitive load: < 1000 pF Max. inductive load: < 1 mH
Connection data	Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16
Dimensions	Width: 22.5 mm Height: 118 mm Depth: 114 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C (non-condensing) Altitude: Ã¢Ã¢°¤ 2000 m Permissible humidity (operation): 10 % ... 95 % (non-condensing)
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: UL 61010 Listed
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Note: When being exposed to interference, there may be minimal deviations. Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4
Standards and regulations	Standards/regulations: IEC 61010-1 IEC 61010-2-030
Mounting	Mounting type: DIN rail mounting Assembly instructions: Can be aligned with spacing = 10 mm Mounting position: any
