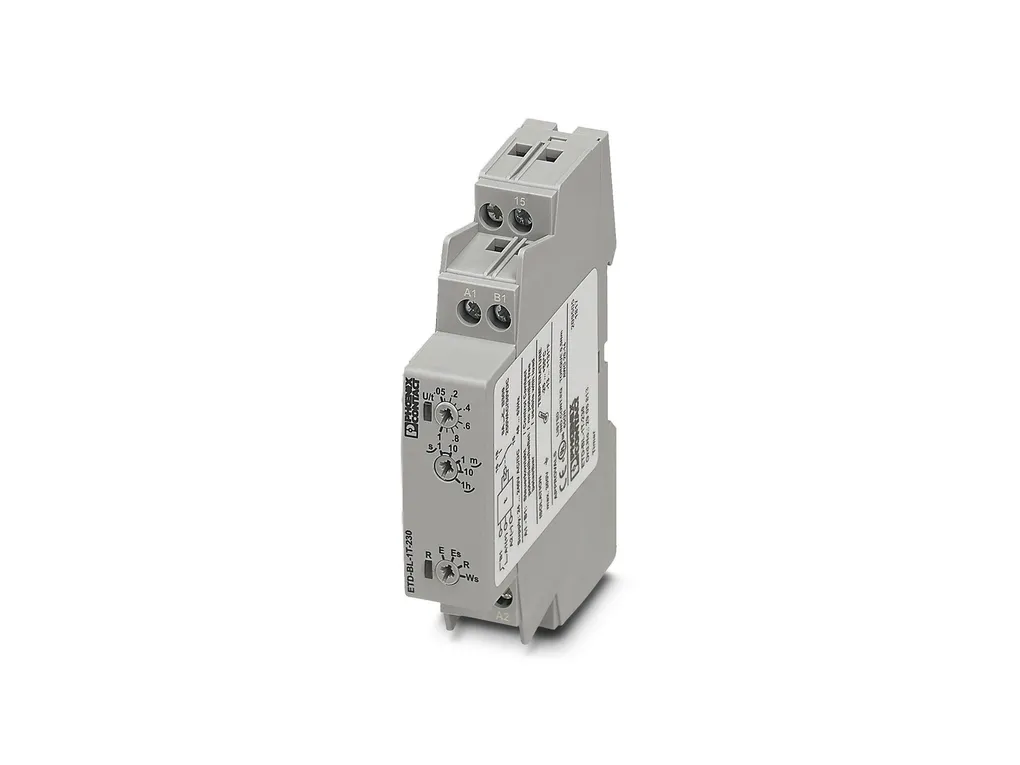

| Product properties | Product type: Timer relay Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: approx. 2x 105 cycles at ohmic load, 1000 VA Nominal frequency: 48 Hz ... 63 Hz Nominal power consumption: 2.5 VA (1ÃW) Test voltage relay winding/relay contact: 4 kV Rated insulation voltage: 300 V |

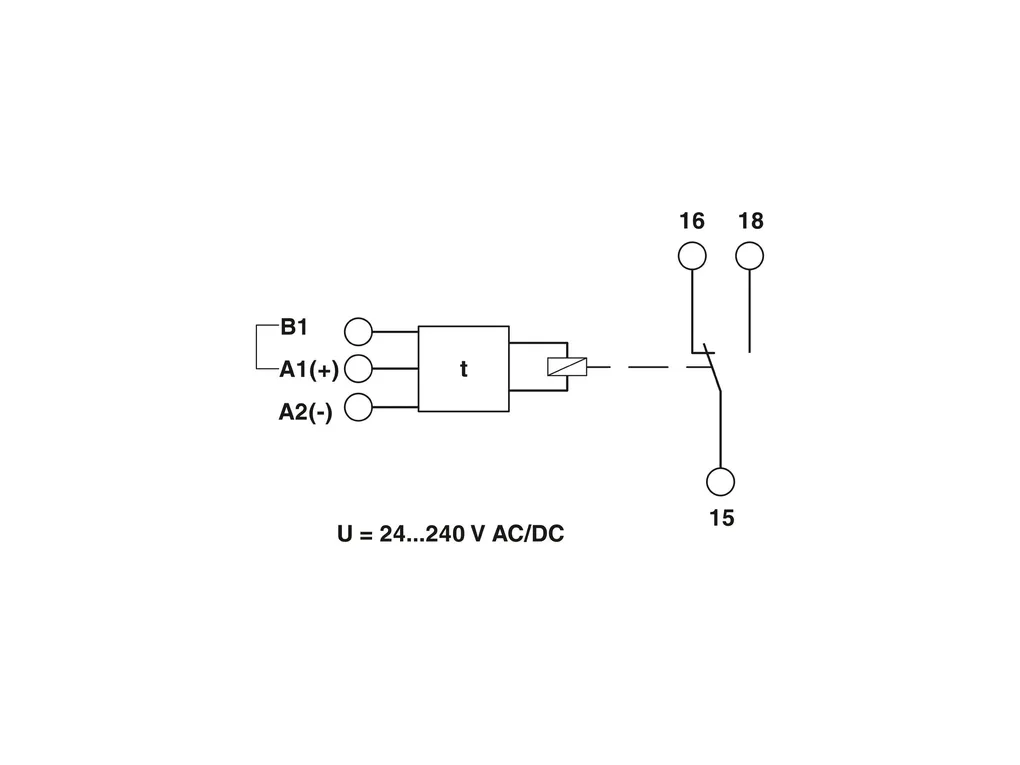

| Input data | Nominal power consumption: 2.5 VA (1ÃW) Input voltage range: 24 V AC/DC ... 240 V AC/DC -10Ã%Ã...Ã+15Ã% Temperature coefficient, typical: ââ°¤ 0.01 %/K Recovery time: 500 ms Function: lp: Switched-mode beginning with the pause li: Switched-mode beginning with the pulse Setting range time: 50 ms ... 100 h (7 time end ranges) Basic accuracy: ñ 1 % (of scale end value) Setting accuracy: ââ°¤ 5 % (of scale end value) Repeat accuracy: ââ°¤ 0.5 % ñ5Ãms Control Connection name: Non-floating, terminals A1-B1 Control pulse length: ââ°¥ 50 ms (DC) ââ°¥ 100 ms (AC) |
| Output data | Switching Contact switching type: 1 floating changeover contact Maximum switching voltage: 250 VÃAC (in acc. with IEC 60664-1) Interrupting rating (ohmic load) max.: 750 VA (3 A/250 V AC, module aligned, ââ°¤ 5 mm spacing) 1250 VA (5 A/250 V AC, module not aligned, ââ°¥ 5 mm spacing) Output fuse: 5 A (fast-blow) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Conductor cross section rigid: 0.5 mm² ... 2.5 mm² Conductor cross section flexible: 0.5 mm² ... 2.5 mm² Conductor cross section AWG: 20 ... 14 Tightening torque: 1 Nm ... 1 Nm |
| Signaling | Status display: Green LED (POWER) Yellow LED (relay active) |
| Dimensions | Width: 17.5 mm Height: 89.5 mm Depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Housing): IP40 (Housing) Degree of protection (Connection terminal blocks): IP20 (Connection terminal blocks) Ambient temperature (operation): -25°C ... 55°C -25°C ... 40°C (corresponds to ULÃ508) Ambient temperature (storage/transport): -25°C ... 70°C Climatic class: 3K3 (in acc. with EN 60721) Permissible humidity (operation): 15 % ... 85 % |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4 |
| Standards and regulations | Standards/regulations: ENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715 Mounting position: any |
