2908215 PHOENIX CONTACT -

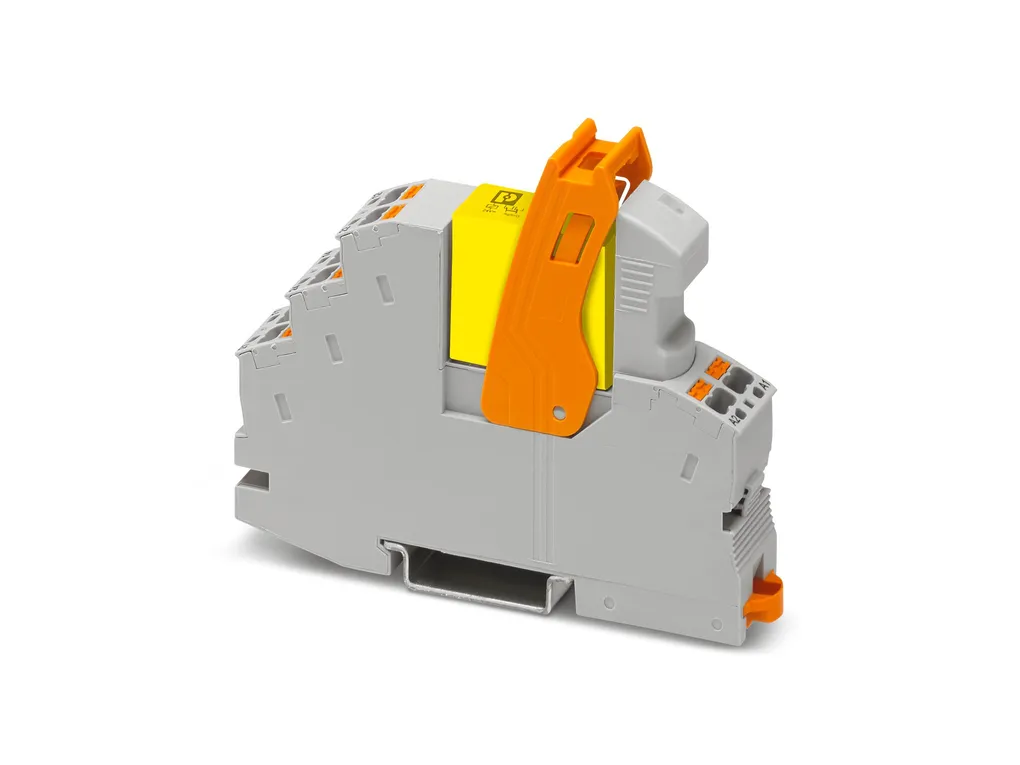

RIF-1-RPT-LDP-24DC/2X21/FG - Relay Module

Preassembled relay module with Push-in connection, consisting of: relay base, safety relay with force-guided contacts in accordance with DINEN61810-3, plug-in display/interference suppression module, and retaining bracket, contact switching type: 2 changeover contacts, input voltage: 24VDC

Cod. Articolo: 2908215 copia - copy

Cod. Fornitore: 2908215 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: RIFLINEÃcomplete Application: Forcibly guided contacts Operating mode: 100% operating factor Mechanical service life: approx. 10⁷ cycles B_10d: 600000 Cycles (AC1; 250ÃVÃ/Ã6ÃA; 1 NO) 900000 Cycles (AC1; 250ÃVÃ/Ã3ÃA; 1ÃNO) 1800000 Cycles (AC1; 250ÃVÃ/Ã1,5ÃA; 1ÃNO) 300000 Cycles (DC13; 24ÃVÃ/Ã3ÃA; 1ÃNO) 1000000 Cycles (DC13; 24ÃVÃ/Ã1,5ÃA; 1ÃNO) 3000000 Cycles (DC13; 24ÃVÃ/Ã0,75ÃA; 1ÃNO) Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.72 W Test voltage (Winding/contact): 4 kV_rms (50ÃHz, 60Ãs) Test voltage (): 1.5 kV_rms (50ÃHz, 60Ãs) Test voltage (Changeover contact/changeover contact): 2.5 kV_rms (50ÃHz, 60Ãs) Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC (Input/output) Rated surge voltage: 6 kV (Input/output) 4 kV (between the changeover contacts) Short-circuit protection device Current: 10 A (RT28-32) Voltage: 500 V (SCPD) Short-circuit current: 1 kA (conditional short-circuit current)
Input data	Coil side Nominal operating voltage U_N: 24 VÃDC Input voltage range: 20.4 VÃDC ... 28.8 VÃDC (20Ã°C) Input voltage range in reference to U_N: see diagram Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 30 mA Typical response time: 15 ms Typical release time: 10 ms Coil voltage: 24 VÃDC Protective circuit: Freewheeling diode Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 2 changeover contacts, forcibly actuated Type of switch contact: Single contact Contact material: AgSnO Maximum switching voltage: 250 V AC/DC Limiting continuous current: 6 A Interrupting rating (ohmic load) max.: 144 W (24ÃVÃDC) 58 W (48ÃVÃDC) 54 W (60ÃVÃDC) 55 W (110ÃVÃDC) 55 W (220ÃVÃDC) 1500 VA (250ÃVÃAC) Utilization category CB Scheme (IEC 60947-5-1): AC15, 3 A/240 V (N/O contact)
Connection data	Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) Conductor cross section AWG: 26 ... 16
Dimensions	Drill hole Diameter: 3.2 mm Width: 16 mm Height: 96 mm Depth: 70 mm
Material specifications	Flammability rating according to UL 94: V2 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT I (Relay) Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: cULus Listed UL 508 Certificate: NRNT.E172140 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	All specifications in accordance with the standard Standards/regulations: IEC 60947-5-1 IEC 61810-3 Air clearances and creepage distances between the power circuits Standards/regulations: DINÃENÃ60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
