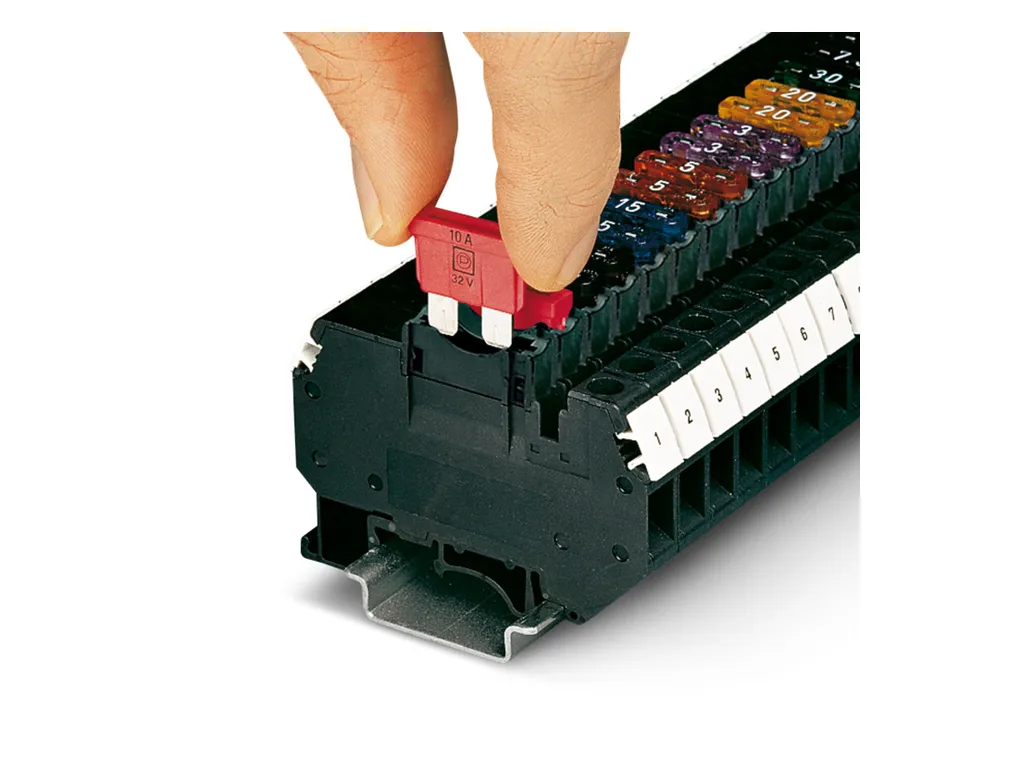

| Product properties | Product type: Fuse terminal block Number of positions: 1 Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Fuse type: Flat Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 1.31 W Fuse: C Voltage LED: 12 VÃDC (LED red) Current LED: 2 mA DC (LED red) Maximum current with single arrangement: 30 A (special arrangements on request) |
| Input data | Voltage LED: 12 VÃDC (LED red) |
| Connection data | Number of connections per level: 2 Nominal cross section: 6 mm² 1 level Screw thread: M4 Tightening torque: 1.5 ... 1.8 Nm Stripping length: 10 mm Internal cylindrical gage: A5 Connection in acc. with standard: IEC 60947-7-3 Conductor cross section rigid: 0.2 mm² ... 10 mm² Cross section AWG: 24 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 6 mm² Conductor cross section, flexible [AWG]: 24 ... 10 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 4 mm² Nominal current: 30 A Maximum load current: 30 A Nominal voltage: 250 V Nominal cross section: 4 mm² |
| Dimensions | Width: 8.2 mm Height: 64 mm Depth on NSÃ32: 57 mm Depth on NSÃ35/7,5: 52 mm Depth on NSÃ35/15: 59.5 mm |
| Material specifications | Color: black Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-3 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 NSÃ32 |
