PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FKIC 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0°, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard

Sensor/actuator cable, 4-position, free cable end, on Socket straight M12, coding: A, cable length: 10 m

Preassembled relay module with Push-in connection, consisting of: relay base, power contact relay, and retaining bracket. Contact switching type: 4 changeover contacts. Input voltage: 24 V DC

Partition plate, width: 2 mm, height: 73.5 mm, color: gray

PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard

End cover, width: 2.2 mm, height: 72.2 mm, color: gray

Sensor/actuator cable, 3-position, free cable end, on Valve connector C (8mm), with 1 LED, connected with Z diode, cable length: 5 m

End cover, nom. voltage: 500 V, width: 2.2 mm, height: 101 mm, color: gray

End cover, width: 2.2 mm, height: 83.5 mm, color: gray

End cover, width: 1.5 mm, height: 42.5 mm, color: gray

Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: red

Sensor/actuator cable, 4-position halogen-free, free cable end, on Socket straight M12, coding: A, cable length: 10 m

Ground terminal, number of connections: 2, connection method: Push-in connection, cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

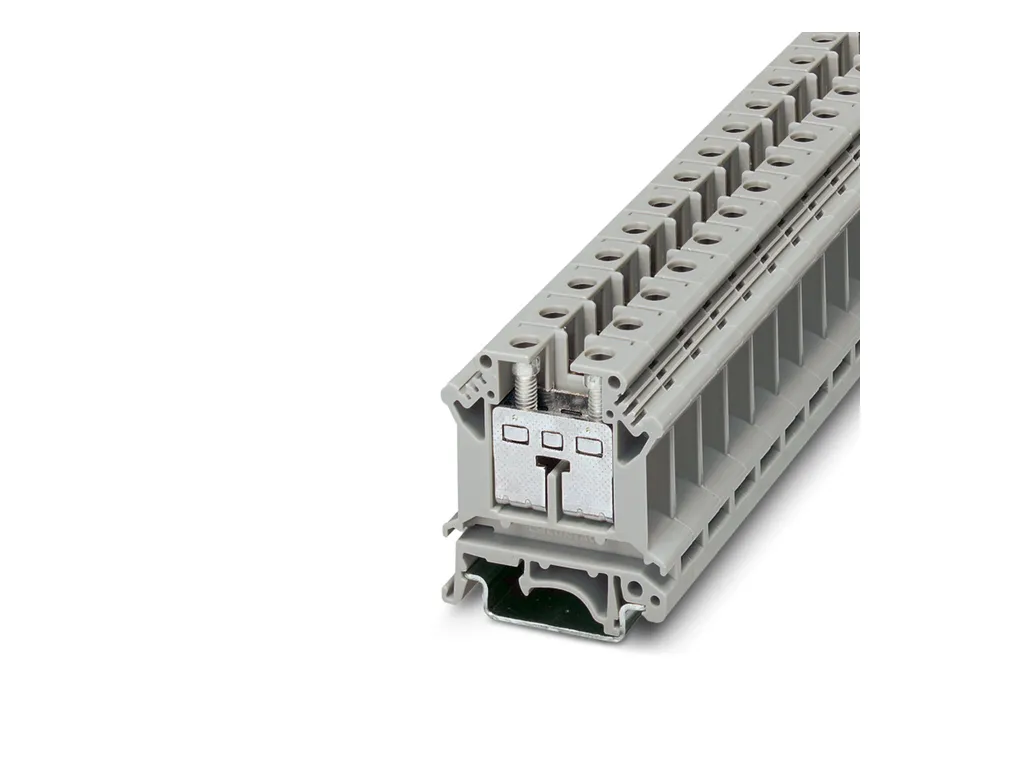

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, number of connections: 2, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Data connector, Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug straight M12, coding: D, Insulation displacement connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm

Installation terminal block, nom. voltage: 400 V, nominal current: 76 A, Screw connection, Rated cross section: 16 mm², cross section:2.5 mm²-25 mm², mounting type: NS 35/7,5, NS35/15, NS32, color:gray

Marker for terminal blocks, Strip, white, unlabeled, can be labeled with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 3.5 mm, lettering field size: 3.5x5mm, Number of individual labels: 34

Spring cage ground terminal block, number of connections: 2, connection method: Spring-cage connection, 1 level, cross section: 0.08 mm²-1.5 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

Step bracket, pitch: 5 mm, number of positions: 2, color: silver
