2813499 PHOENIX CONTACT -

MCR-SL-S-200-I-LP - Current transducers

MCR current measuring transducer, for measuring sinusoidal and non-sinusoidal alternating currents, input current 0...200 A, loop-powered output with 4...20 mA

Cod. Articolo: 2813499 copia - copy

Cod. Fornitore: 2813499 copia - copy

PHOENIX CONTACT

Product properties	Product type: Current transducer Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 1 W Test voltage input/output: 4.13 kV AC (50ÃHz, 60Ãs) Step response (10-90%): < 340 ms Maximum temperature coefficient: < 0.025 %/K Maximum transmission error: < 1 % (of final value) Rated insulation voltage: 300 VÃAC (to earth) Supply Supply voltage range: loop-powered, no external supply necessary
Input data	Signal Configurable/programmable: Yes Current input signal: 0 A ... 200 A Measurement Input current range: 0 A AC ... 100 A AC 0 A AC ... 150 A AC 0 A AC ... 200 A AC Setting range for min. input current: 0 A AC ... 100 A AC Setting range for max. input current: 0 A AC ... 200 A AC Overload capacity: Depending on laid conductor Surge strength: Depending on through connected conductor Frequency measuring range: 30 Hz ... 6000 Hz Curve type: Sinusoidal and non-sinusoidal Operate threshold: 1 % (of final value)
Output data	Signal: Current Current output signal: 4 mA ... 20 mA Max. current output signal: < 25 mA Load/output load current output: (U_B - 12ÃV) x 350 / 12ÃA
Connection data	Connection method: Screw connection Through connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm ... 0.6 Nm (4,4Ã...Ã5,31Ãlbf-in.)

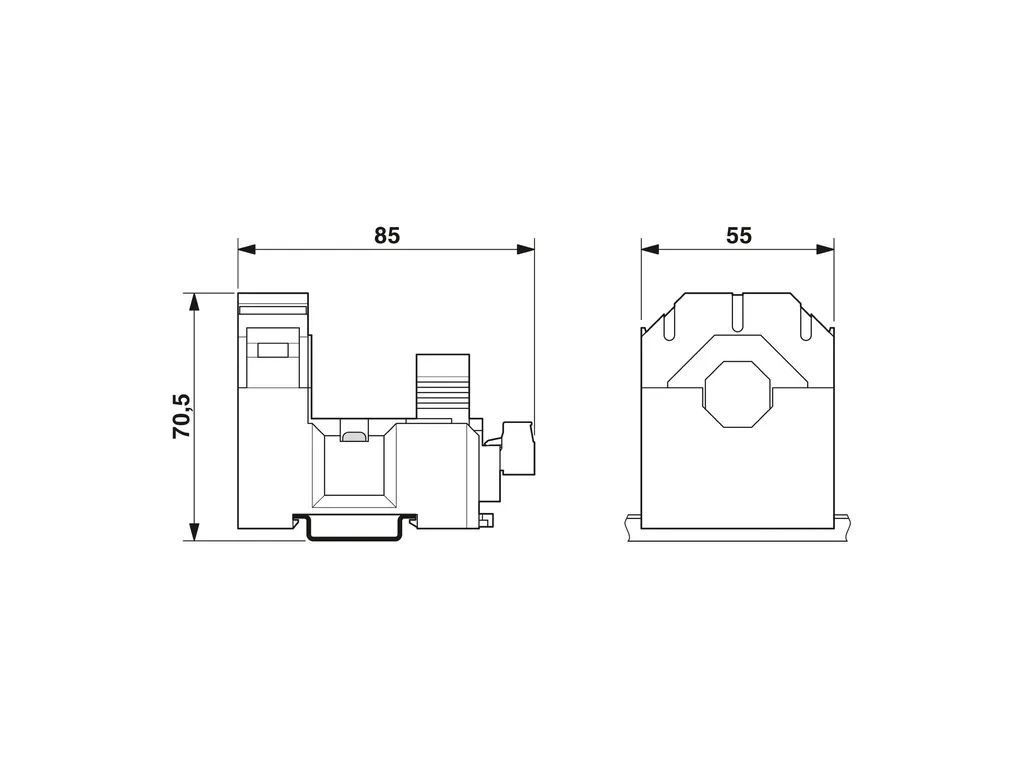

Dimensions	Item dimensions Width: 55 mm Height: 85 mm Depth: 70.5 mm Circular conductor Diameter: Ã¢Ã¢°¤ 18.5 mm
Material specifications	Housing material: Polyamide PA non-reinforced
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508 Class I, Div. 2, Groups A, B, C, D T4A Class I, Zone 2, Group IIC T4A Or Non-Hazardous Locations only
Mounting	Mounting type: DIN rail mounting Mounting position: any
